Picker
The Picker API provides a search-based interface to help users find and select one or more resources that you provide, such as product reviews, email templates, or subscription options, and then returns the selected resource ids to your app.
If you are picking products, product variants, or collections, you should use the Resource Picker API instead.
Anchor to pickerpicker(
The picker API is a function that accepts an options argument for configuration and returns a Promise that resolves to the picker instance once the picker modal is opened.
Anchor to picker-parametersParameters
- Anchor to optionsoptionsrequired
Anchor to picker-returnsReturns
PublicPickerApi
- options
PickerOptions
Promise<PickerInstance>(
options: PickerOptions,
) => Promise<PickerInstance>PickerOptions
- headers
The data headers for the picker. These are used to display the table headers in the picker modal.
Header[] - heading
The heading of the picker. This is displayed in the title of the picker modal.
string - items
The items to display in the picker. These are used to display the rows in the picker modal.
PickerItem[] - multiple
Whether to allow selecting multiple items of a specific type or not. If a number is provided, then limit the selections to a maximum of that number of items.
boolean | number
export interface PickerOptions {
/**
* The heading of the picker. This is displayed in the title of the picker modal.
*/
heading: string;
/**
* Whether to allow selecting multiple items of a specific type or not. If a number is provided, then limit the selections to a maximum of that number of items.
* @defaultValue false
*/
multiple?: boolean | number;
/**
* The data headers for the picker. These are used to display the table headers in the picker modal.
*/
headers?: Header[];
/**
* The items to display in the picker. These are used to display the rows in the picker modal.
*/
items: PickerItem[];
}Header
- content
The content to display in the table column header.
string - type
The type of data to display in the column. The type is used to format the data in the column. If the type is 'number', the data in the column will be right-aligned, this should be used when referencing currency or numeric values. If the type is 'string', the data in the column will be left-aligned.
'string' | 'number'
interface Header {
/**
* The content to display in the table column header.
*/
content?: string;
/**
* The type of data to display in the column. The type is used to format the data in the column.
* If the type is 'number', the data in the column will be right-aligned, this should be used when referencing currency or numeric values.
* If the type is 'string', the data in the column will be left-aligned.
* @defaultValue 'string'
*/
type?: 'string' | 'number';
}PickerItem
- badges
The badges to display in the first column of the row. These are used to display additional information about the item, such as progress of an action or tone indicating the status of that item.
Badge[] - data
The additional content to display in the second and third columns of the row, if provided.
DataPoint[] - disabled
Whether the item is disabled or not. If the item is disabled, it cannot be selected.
boolean - heading
The primary content to display in the first column of the row.
string - id
string - selected
Whether the item is selected or not when the picker is opened. The user may deselect the item if it is preselected.
boolean - thumbnail
The thumbnail to display at the start of the row. This is used to display an image or icon for the item.
{ url: string; }
export interface PickerItem {
/*
* The unique identifier of the item. This will be returned by the picker if selected.
*/
id: string;
/**
* The primary content to display in the first column of the row.
*/
heading: string;
/**
* The additional content to display in the second and third columns of the row, if provided.
*/
data?: DataPoint[];
/**
* Whether the item is disabled or not. If the item is disabled, it cannot be selected.
* @defaultValue false
*/
disabled?: boolean;
/**
* Whether the item is selected or not when the picker is opened. The user may deselect the item if it is preselected.
*/
selected?: boolean;
/**
* The badges to display in the first column of the row. These are used to display additional information about the item, such as progress of an action or tone indicating the status of that item.
*/
badges?: Badge[];
/**
* The thumbnail to display at the start of the row. This is used to display an image or icon for the item.
*/
thumbnail?: {url: string};
}Badge
- content
string - progress
Progress - tone
Tone
interface Badge {
content: string;
tone?: Tone;
progress?: Progress;
}Progress
'incomplete' | 'partiallyComplete' | 'complete'Tone
'info' | 'success' | 'warning' | 'critical'DataPoint
string | number | undefinedPickerInstance
- selected
A Promise that resolves with the selected item IDs when the user presses the "Select" button in the picker.
Promise<string[]>
export interface PickerInstance {
/**
* A Promise that resolves with the selected item IDs when the user presses the "Select" button in the picker.
*/
selected?: Promise<string[]>;
}Picker
examples
Picker

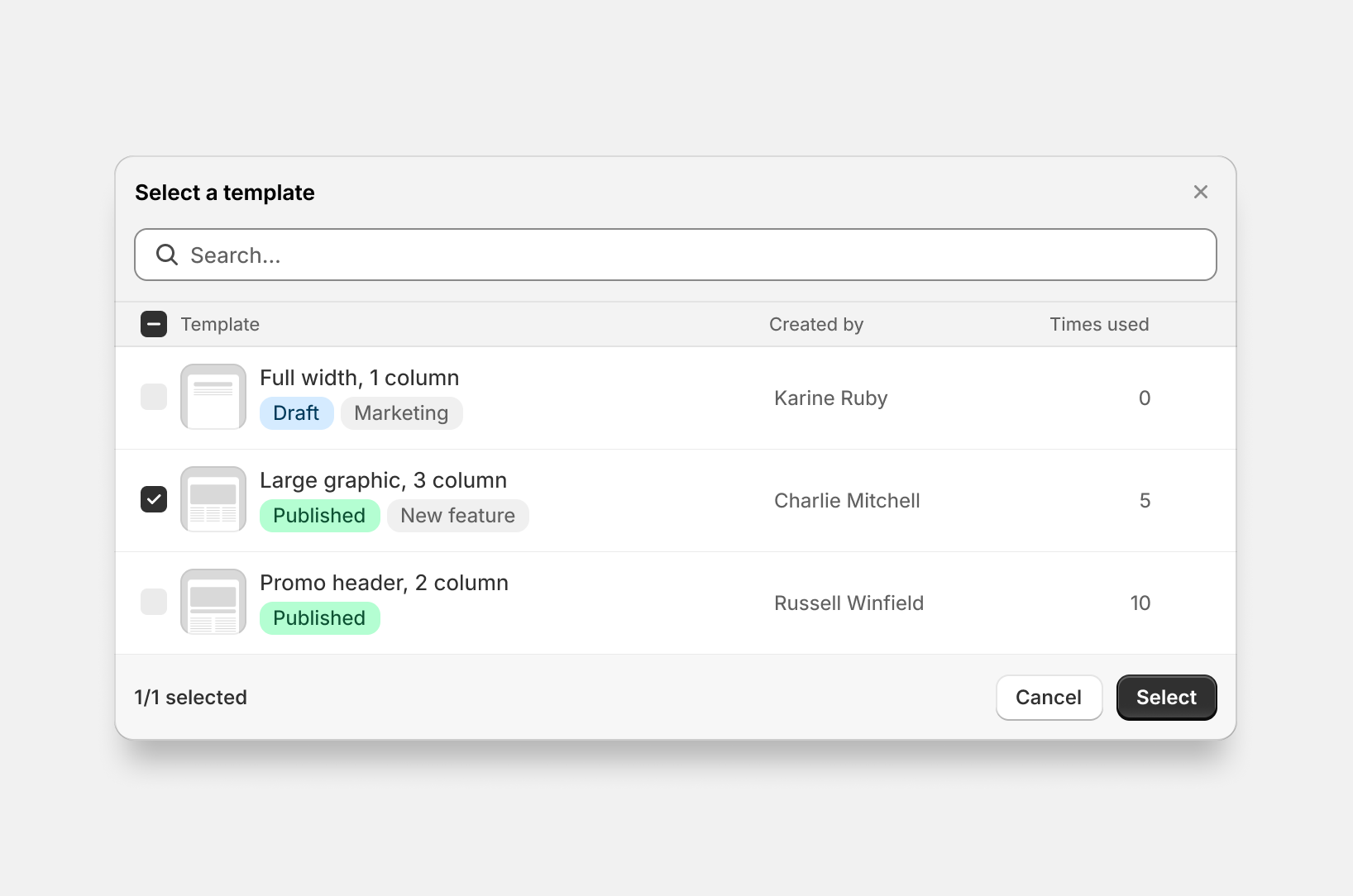

const picker = await shopify.picker({ heading: 'Select a template', multiple: false, headers: [ {content: 'Templates'}, {content: 'Created by'}, {content: 'Times used', type: 'number'}, ], items: [ { id: '1', heading: 'Full width, 1 column', data: ['Karine Ruby', '0'], badges: [{content: 'Draft', tone: 'info'}, {content: 'Marketing'}], }, { id: '2', heading: 'Large graphic, 3 column', data: ['Charlie Mitchell', '5'], badges: [ {content: 'Published', tone: 'success'}, {content: 'New feature'}, ], selected: true, }, { id: '3', heading: 'Promo header, 2 column', data: ['Russell Winfield', '10'], badges: [{content: 'Published', tone: 'success'}], }, ], }); const selected = await picker.selected;
Preview
Anchor to examplesExamples
Pickers with different options
Anchor to example-simple-pickerSimple picker
Minimal required fields picker configuration.
If you don't provide the required options (heading and items), the picker will not open and an error will be logged.
Anchor to example-limited-selectable-itemsLimited selectable items
Setting a specific number of selectable items. In this example, the user can select up to 2 items.
Anchor to example-unlimited-selectable-itemsUnlimited selectable items
Setting an unlimited number of selectable items.
Anchor to example-preselected-itemsPreselected items
Providing preselected items in the picker. These will be selected when the picker opens but can be deselected by the user.
Anchor to example-disabled-itemsDisabled items
Providing disabled items in the picker. These will be disabled and cannot be selected by the user.
Simple picker
examples
Simple picker
description
Minimal required fields picker configuration. If you don't provide the required options (`heading` and `items`), the picker will not open and an error will be logged.
const picker = await shopify.picker({ heading: 'Simple picker configuration', items: [ { id: '1', heading: 'Item 1', }, { id: '2', heading: 'Item 2', }, ], }); const selected = await picker.selected;Limited selectable items
description
Setting a specific number of selectable items. In this example, the user can select up to 2 items.
const picker = await shopify.picker({ heading: 'Limited selectable items (up to 2)', multiple: 2, headers: [{content: 'Main heading'}], items: [ { id: '1', heading: 'Item 1', }, { id: '2', heading: 'Item 2', }, { id: '3', heading: 'Item 3', }, ], }); const selected = await picker.selected;Unlimited selectable items
description
Setting an unlimited number of selectable items.
const picker = await shopify.picker({ heading: 'Unlimited selectable items', multiple: true, headers: [{content: 'Main heading'}], items: [ { id: '1', heading: 'Item 1', }, { id: '2', heading: 'Item 2', }, { id: '3', heading: 'Item 3', }, ], }); const selected = await picker.selected;Preselected items
description
Providing preselected items in the picker. These will be selected when the picker opens but can be deselected by the user.
const picker = await shopify.picker({ heading: 'Preselected items', items: [ { id: '1', heading: 'Item 1', selected: true, }, { id: '2', heading: 'Item 2', }, ], }); const selected = await picker.selected;Disabled items
description
Providing disabled items in the picker. These will be disabled and cannot be selected by the user.
const picker = await shopify.picker({ heading: 'Disabled items', items: [ { id: '1', heading: 'Item 1', disabled: true, }, { id: '2', heading: 'Item 2', }, ], }); const selected = await picker.selected;
