# Resource Picker

The Resource Picker API provides a search-based interface to help users find and select one or more products, collections, or product variants, and then returns the selected resources to your app. Both the app and the user must have the necessary permissions to access the resources selected.

Tip

If you are picking app resources such as product reviews, email templates, or subscription options, you should use the [Picker](picker) API instead.

## Resource Picker Options

The `Resource Picker` accepts a variety of options to customize the picker's behavior.

* type

  ResourceType

  required

  The type of resource you want to pick.

* action

  'add' | 'select'

  Default: 'add'

  The action verb appears in the title and as the primary action of the Resource Picker.

* filter

  Filters

  Filters for what resource to show.

* multiple

  boolean | number

  Default: false

  Whether to allow selecting multiple items of a specific type or not. If a number is provided, then limit the selections to a maximum of that number of items. When type is Product, the user may still select multiple variants of a single product, even if multiple is false.

* query

  string

  Default: ''

  GraphQL initial search query for filtering resources available in the picker. See [search syntax](https://shopify.dev/docs/api/usage/search-syntax) for more information. This is displayed in the search bar when the picker is opened and can be edited by users. For most use cases, you should use the `filter.query` option instead which doesn't show the query in the UI.

* selectionIds

  BaseResource\[]

  Default: \[]

  Resources that should be preselected when the picker is opened.

### Filters

* archived

  Whether to show \[archived products]\(https\://help.shopify.com/en/manual/products/details?shpxid=70af7d87-E0F2-4973-8B09-B972AAF0ADFD#product-availability). Only applies to the Product resource type picker. Setting this to undefined will show a badge on draft products.

  ```ts
  boolean | undefined
  ```

* draft

  Whether to show \[draft products]\(https\://help.shopify.com/en/manual/products/details?shpxid=70af7d87-E0F2-4973-8B09-B972AAF0ADFD#product-availability). Only applies to the Product resource type picker. Setting this to undefined will show a badge on draft products.

  ```ts
  boolean | undefined
  ```

* hidden

  Whether to show hidden resources, referring to products that are not published on any sales channels.

  ```ts
  boolean
  ```

* query

  GraphQL initial search query for filtering resources available in the picker. See \[search syntax]\(https\://shopify.dev/docs/api/usage/search-syntax) for more information. This is not displayed in the search bar when the picker is opened.

  ```ts
  string
  ```

* variants

  Whether to show product variants. Only applies to the Product resource type picker.

  ```ts
  boolean
  ```

```ts
interface Filters {
  /**
   * Whether to show hidden resources, referring to products that are not published on any sales channels.
   * @defaultValue true
   */
  hidden?: boolean;
  /**
   * Whether to show product variants. Only applies to the Product resource type picker.
   * @defaultValue true
   */
  variants?: boolean;
  /**
   * Whether to show [draft products](https://help.shopify.com/en/manual/products/details?shpxid=70af7d87-E0F2-4973-8B09-B972AAF0ADFD#product-availability).
   * Only applies to the Product resource type picker.
   * Setting this to undefined will show a badge on draft products.
   * @defaultValue true
   */
  draft?: boolean | undefined;
  /**
   * Whether to show [archived products](https://help.shopify.com/en/manual/products/details?shpxid=70af7d87-E0F2-4973-8B09-B972AAF0ADFD#product-availability).
   * Only applies to the Product resource type picker.
   * Setting this to undefined will show a badge on draft products.
   * @defaultValue true
   */
  archived?: boolean | undefined;
  /**
   * GraphQL initial search query for filtering resources available in the picker.
   * See [search syntax](https://shopify.dev/docs/api/usage/search-syntax) for more information.
   * This is not displayed in the search bar when the picker is opened.
   */
  query?: string;
}
```

### BaseResource

* id

  in GraphQL id format, ie 'gid://shopify/Product/1'

  ```ts
  string
  ```

* variants

  ```ts
  Resource[]
  ```

```ts
interface BaseResource extends Resource {
  variants?: Resource[];
}
```

### Resource

* id

  in GraphQL id format, ie 'gid://shopify/Product/1'

  ```ts
  string
  ```

```ts
interface Resource {
  /** in GraphQL id format, ie 'gid://shopify/Product/1' */
  id: string;
}
```

## Resource Picker Return Payload

The `Resource Picker` returns a Promise with an array of the selected resources. The object type in the array varies based on the provided `type` option.

If the picker is cancelled, the Promise resolves to `undefined`

* when type is "collection":

  Collection\[]

* when type is "product":

  Product\[]

* when type is "variant":

  ProductVariant\[]

### Collection

* availablePublicationCount

  ```ts
  number
  ```

* description

  ```ts
  string
  ```

* descriptionHtml

  ```ts
  string
  ```

* handle

  ```ts
  string
  ```

* id

  in GraphQL id format, ie 'gid://shopify/Product/1'

  ```ts
  string
  ```

* image

  ```ts
  Image | null
  ```

* productsAutomaticallySortedCount

  ```ts
  number
  ```

* productsCount

  ```ts
  number
  ```

* productsManuallySortedCount

  ```ts
  number
  ```

* publicationCount

  ```ts
  number
  ```

* ruleSet

  ```ts
  RuleSet | null
  ```

* seo

  ```ts
  { description?: string; title?: string; }
  ```

* sortOrder

  ```ts
  CollectionSortOrder
  ```

* storefrontId

  ```ts
  string
  ```

* templateSuffix

  ```ts
  string | null
  ```

* title

  ```ts
  string
  ```

* updatedAt

  ```ts
  string
  ```

```ts
export interface Collection extends Resource {
  availablePublicationCount: number;
  description: string;
  descriptionHtml: string;
  handle: string;
  id: string;
  image?: Image | null;
  productsAutomaticallySortedCount: number;
  productsCount: number;
  productsManuallySortedCount: number;
  publicationCount: number;
  ruleSet?: RuleSet | null;
  seo: {
    description?: string | null;
    title?: string | null;
  };
  sortOrder: CollectionSortOrder;
  storefrontId: string;
  templateSuffix?: string | null;
  title: string;
  updatedAt: string;
}
```

### Image

* altText

  ```ts
  string
  ```

* id

  ```ts
  string
  ```

* originalSrc

  ```ts
  string
  ```

```ts
interface Image {
  id: string;
  altText?: string;
  originalSrc: string;
}
```

### RuleSet

* appliedDisjunctively

  ```ts
  boolean
  ```

* rules

  ```ts
  CollectionRule[]
  ```

```ts
interface RuleSet {
  appliedDisjunctively: boolean;
  rules: CollectionRule[];
}
```

### CollectionRule

* column

  ```ts
  string
  ```

* condition

  ```ts
  string
  ```

* relation

  ```ts
  string
  ```

```ts
interface CollectionRule {
  column: string;
  condition: string;
  relation: string;
}
```

### CollectionSortOrder

* Manual

  ```ts
  MANUAL
  ```

* BestSelling

  ```ts
  BEST_SELLING
  ```

* AlphaAsc

  ```ts
  ALPHA_ASC
  ```

* AlphaDesc

  ```ts
  ALPHA_DESC
  ```

* PriceDesc

  ```ts
  PRICE_DESC
  ```

* PriceAsc

  ```ts
  PRICE_ASC
  ```

* CreatedDesc

  ```ts
  CREATED_DESC
  ```

* Created

  ```ts
  CREATED
  ```

* MostRelevant

  ```ts
  MOST_RELEVANT
  ```

```ts
enum CollectionSortOrder {
  Manual = 'MANUAL',
  BestSelling = 'BEST_SELLING',
  AlphaAsc = 'ALPHA_ASC',
  AlphaDesc = 'ALPHA_DESC',
  PriceDesc = 'PRICE_DESC',
  PriceAsc = 'PRICE_ASC',
  CreatedDesc = 'CREATED_DESC',
  Created = 'CREATED',
  MostRelevant = 'MOST_RELEVANT',
}
```

### Product

* availablePublicationCount

  ```ts
  number
  ```

* createdAt

  ```ts
  string
  ```

* descriptionHtml

  ```ts
  string
  ```

* handle

  ```ts
  string
  ```

* hasOnlyDefaultVariant

  ```ts
  boolean
  ```

* id

  in GraphQL id format, ie 'gid://shopify/Product/1'

  ```ts
  string
  ```

* images

  ```ts
  Image[]
  ```

* options

  ```ts
  { id: string; name: string; position: number; values: string[]; }[]
  ```

* productType

  ```ts
  string
  ```

* publishedAt

  ```ts
  string | null
  ```

* status

  ```ts
  ProductStatus
  ```

* tags

  ```ts
  string[]
  ```

* templateSuffix

  ```ts
  string | null
  ```

* title

  ```ts
  string
  ```

* totalInventory

  ```ts
  number
  ```

* totalVariants

  ```ts
  number
  ```

* tracksInventory

  ```ts
  boolean
  ```

* updatedAt

  ```ts
  string
  ```

* variants

  ```ts
  Partial<ProductVariant>[]
  ```

* vendor

  ```ts
  string
  ```

```ts
export interface Product extends Resource {
  availablePublicationCount: number;
  createdAt: string;
  descriptionHtml: string;
  handle: string;
  hasOnlyDefaultVariant: boolean;
  images: Image[];
  options: {
    id: string;
    name: string;
    position: number;
    values: string[];
  }[];
  productType: string;
  publishedAt?: string | null;
  tags: string[];
  templateSuffix?: string | null;
  title: string;
  totalInventory: number;
  totalVariants: number;
  tracksInventory: boolean;
  variants: Partial<ProductVariant>[];
  vendor: string;
  updatedAt: string;
  status: ProductStatus;
}
```

### ProductStatus

* Active

  ```ts
  ACTIVE
  ```

* Archived

  ```ts
  ARCHIVED
  ```

* Draft

  ```ts
  DRAFT
  ```

```ts
enum ProductStatus {
  Active = 'ACTIVE',
  Archived = 'ARCHIVED',
  Draft = 'DRAFT',
}
```

### ProductVariant

* availableForSale

  ```ts
  boolean
  ```

* barcode

  ```ts
  string | null
  ```

* compareAtPrice

  ```ts
  Money | null
  ```

* createdAt

  ```ts
  string
  ```

* displayName

  ```ts
  string
  ```

* fulfillmentService

  ```ts
  { id: string; inventoryManagement: boolean; productBased: boolean; serviceName: string; type: FulfillmentServiceType; }
  ```

* id

  in GraphQL id format, ie 'gid://shopify/Product/1'

  ```ts
  string
  ```

* image

  ```ts
  Image | null
  ```

* inventoryItem

  ```ts
  { id: string; }
  ```

* inventoryManagement

  ```ts
  ProductVariantInventoryManagement
  ```

* inventoryPolicy

  ```ts
  ProductVariantInventoryPolicy
  ```

* inventoryQuantity

  ```ts
  number | null
  ```

* position

  ```ts
  number
  ```

* price

  ```ts
  Money
  ```

* product

  ```ts
  Partial<Product>
  ```

* requiresShipping

  ```ts
  boolean
  ```

* selectedOptions

  ```ts
  { value?: string; }[]
  ```

* sku

  ```ts
  string | null
  ```

* taxable

  ```ts
  boolean
  ```

* title

  ```ts
  string
  ```

* updatedAt

  ```ts
  string
  ```

* weight

  ```ts
  number | null
  ```

* weightUnit

  ```ts
  WeightUnit
  ```

```ts
export interface ProductVariant extends Resource {
  availableForSale: boolean;
  barcode?: string | null;
  compareAtPrice?: Money | null;
  createdAt: string;
  displayName: string;
  fulfillmentService?: {
    id: string;
    inventoryManagement: boolean;
    productBased: boolean;
    serviceName: string;
    type: FulfillmentServiceType;
  };
  image?: Image | null;
  inventoryItem: {id: string};
  inventoryManagement: ProductVariantInventoryManagement;
  inventoryPolicy: ProductVariantInventoryPolicy;
  inventoryQuantity?: number | null;
  position: number;
  price: Money;
  product: Partial<Product>;
  requiresShipping: boolean;
  selectedOptions: {value?: string | null}[];
  sku?: string | null;
  taxable: boolean;
  title: string;
  weight?: number | null;
  weightUnit: WeightUnit;
  updatedAt: string;
}
```

### Money

```ts
string
```

### FulfillmentServiceType

* GiftCard

  ```ts
  GIFT_CARD
  ```

* Manual

  ```ts
  MANUAL
  ```

* ThirdParty

  ```ts
  THIRD_PARTY
  ```

```ts
enum FulfillmentServiceType {
  GiftCard = 'GIFT_CARD',
  Manual = 'MANUAL',
  ThirdParty = 'THIRD_PARTY',
}
```

### ProductVariantInventoryManagement

* Shopify

  ```ts
  SHOPIFY
  ```

* NotManaged

  ```ts
  NOT_MANAGED
  ```

* FulfillmentService

  ```ts
  FULFILLMENT_SERVICE
  ```

```ts
enum ProductVariantInventoryManagement {
  Shopify = 'SHOPIFY',
  NotManaged = 'NOT_MANAGED',
  FulfillmentService = 'FULFILLMENT_SERVICE',
}
```

### ProductVariantInventoryPolicy

* Deny

  ```ts
  DENY
  ```

* Continue

  ```ts
  CONTINUE
  ```

```ts
enum ProductVariantInventoryPolicy {
  Deny = 'DENY',
  Continue = 'CONTINUE',
}
```

### WeightUnit

* Kilograms

  ```ts
  KILOGRAMS
  ```

* Grams

  ```ts
  GRAMS
  ```

* Pounds

  ```ts
  POUNDS
  ```

* Ounces

  ```ts
  OUNCES
  ```

```ts
enum WeightUnit {
  Kilograms = 'KILOGRAMS',
  Grams = 'GRAMS',
  Pounds = 'POUNDS',
  Ounces = 'OUNCES',
}
```

### Examples

* #### Product picker

  ##### Default

  ```js
  const selected = await shopify.resourcePicker({type: 'product'});
  ```

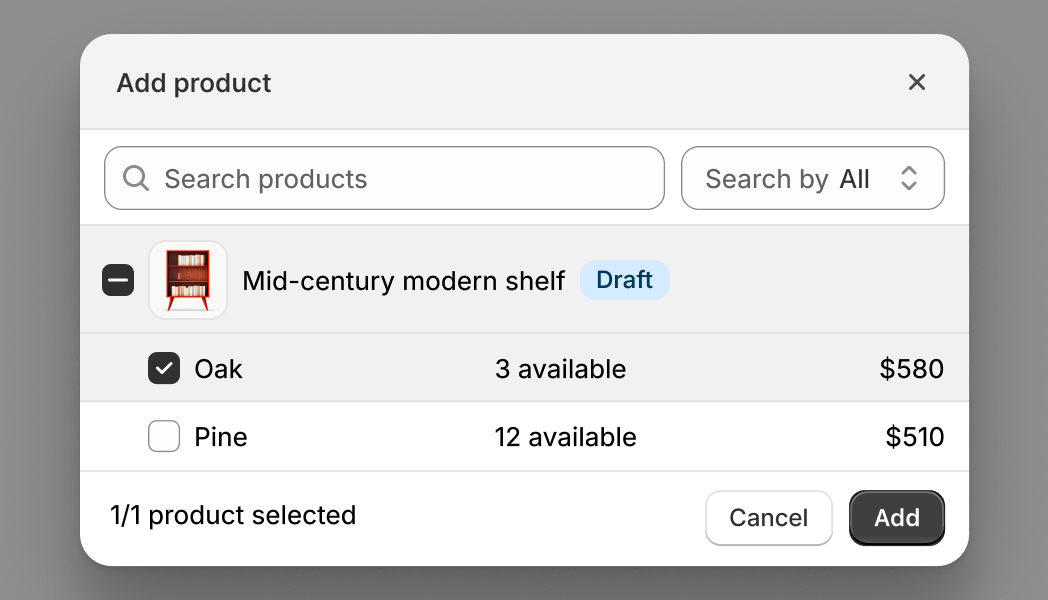

## Preview

![](https://shopify.dev/images/templated-apis-screenshots/admin/apis/resource-picker.png)

## Examples

Resource Pickers with different options

Alternate resources

Alternate resources

Product picker with preselected resources

Preselected resources

Product picker with action verb

Action verb

Product picker with multiple selection

Multiple selection

Product picker with filters

Filters

Product picker with a custom filter query

Filter query

Product picker using returned selection payload

Selection

Product picker with initial query provided

Initial query

### Examples

* #### Alternate resources

  ##### Description

  Alternate resources

  ##### Collection picker

  ```js
  const selected = await shopify.resourcePicker({type: 'collection'});
  ```

  ##### Product variant picker

  ```js
  const selected = await shopify.resourcePicker({type: 'variant'});
  ```

* #### Product picker with preselected resources

  ##### Description

  Preselected resources

  ##### Default

  ```js
  const selected = await shopify.resourcePicker({
    type: 'product',
    selectionIds: [
      {
        id: 'gid://shopify/Product/12345',
        variants: [
          {
            id: 'gid://shopify/ProductVariant/1',
          },
        ],
      },
      {
        id: 'gid://shopify/Product/67890',
      },
    ],
  });
  ```

* #### Product picker with action verb

  ##### Description

  Action verb

  ##### Default

  ```js
  const selected = await shopify.resourcePicker({
    type: 'product',
    action: 'select',
  });
  ```

* #### Product picker with multiple selection

  ##### Description

  Multiple selection

  ##### Unlimited selectable items

  ```js
  const selected = await shopify.resourcePicker({
    type: 'product',
    multiple: true,
  });
  ```

  ##### Maximum selectable items

  ```js
  const selected = await shopify.resourcePicker({
    type: 'product',
    multiple: 5,
  });
  ```

* #### Product picker with filters

  ##### Description

  Filters

  ##### Default

  ```js
  const selected = await shopify.resourcePicker({
    type: 'product',
    filter: {
      hidden: true,
      variants: false,
      draft: false,
      archived: false,
    },
  });
  ```

* #### Product picker with a custom filter query

  ##### Description

  Filter query

  ##### Default

  ```js
  const selected = await shopify.resourcePicker({
    type: 'product',
    filter: {
      query: 'Sweater',
    },
  });
  ```

* #### Product picker using returned selection payload

  ##### Description

  Selection

  ##### Default

  ```js
  const selected = await shopify.resourcePicker({type: 'product'});

  if (selected) {
    console.log(selected);
  } else {
    console.log('Picker was cancelled by the user');
  }
  ```

* #### Product picker with initial query provided

  ##### Description

  Initial query

  ##### Default

  ```js
  const selected = await shopify.resourcePicker({
    type: 'product',
    query: 'Sweater',
  });
  ```
