Disclosure

Disclosure is an optionally controlled component used to put long sections of information under content blocks that users can expand or collapse by pressing an activator. The activator can be specified as children using an action component (Button, Link or Pressable) or Checkbox component. The content blocks can be specified as children inside a structure component (View, InlineLayout, BlockStack, Grid, etc.).

The library takes care of applying the WAI-ARIA Accordion pattern automatically for the activator and the toggled content.

Anchor to disclosurepropsDisclosureProps

Anchor to defaultOpen defaultOpen < | undefined>: For uncontrolled disclosure components, the default open state on the initial render.

It's possible to specify a boolean value, a string value, or an array of string values:

true will expand all content

false will collapse all content

string will expand the content with the matching id

string[] will expand the content with the matching ids
Anchor to open open: For controlled disclosure components, the open state. The open prop should be used along with onToggle to create a controlled disclosure component.
Anchor to onToggle onToggle (open: string[]) => void: Callback fired when the open state of the disclosure changes.
Anchor to transition transition "none": Set to 'none' to disable the default transition animation.

MaybeResponsiveConditionalStyle

A type that represents a value that can be a conditional style. The conditions are based on the viewport size. We highly recommend using the `Style` helper which simplifies the creation of conditional styles. To learn more check out the [conditional styles](/api/checkout-ui-extensions/components/utilities/stylehelper) documentation.

T | ConditionalStyle<T, ViewportSizeCondition>

ConditionalStyle

default
The default value applied when none of the conditional values specified in `conditionals` are met.
```
T
```
conditionals
An array of conditional values.
```
ConditionalValue<T, AcceptedConditions>[]
```

export interface ConditionalStyle<
  T,
  AcceptedConditions extends BaseConditions = Conditions,
> {
  /**
   * The default value applied when none of the conditional values
   * specified in `conditionals` are met.
   */
  default?: T;
  /**
   * An array of conditional values.
   */
  conditionals: ConditionalValue<T, AcceptedConditions>[];
}

ConditionalValue

conditions
The conditions that must be met for the value to be applied. At least one condition must be specified.
```
AcceptedConditions
```
value
The value that will be applied if the conditions are met.
```
T
```

export interface ConditionalValue<
  T,
  AcceptedConditions extends BaseConditions = Conditions,
> {
  /**
   * The conditions that must be met for the value to be applied. At least one
   * condition must be specified.
   */
  conditions: AcceptedConditions;
  /**
   * The value that will be applied if the conditions are met.
   */
  value: T;
}

ViewportSizeCondition

viewportInlineSize
```
{ min: ViewportInlineSize; }
```

export interface ViewportSizeCondition {
  viewportInlineSize: {min: ViewportInlineSize};
}

ViewportInlineSize

'small' | 'medium' | 'large'

DisclosureOpen

boolean | string | string[]

Examples

import {

reactExtension,

Disclosure,

Button,

View,

} from '@shopify/ui-extensions-react/checkout';

export default reactExtension(

'purchase.checkout.block.render',

() => <Extension />,

);

function Extension() {

return (

<Button toggles="one">Toggle</Button>

<View id="one">Content</View>

</Disclosure>

);

}

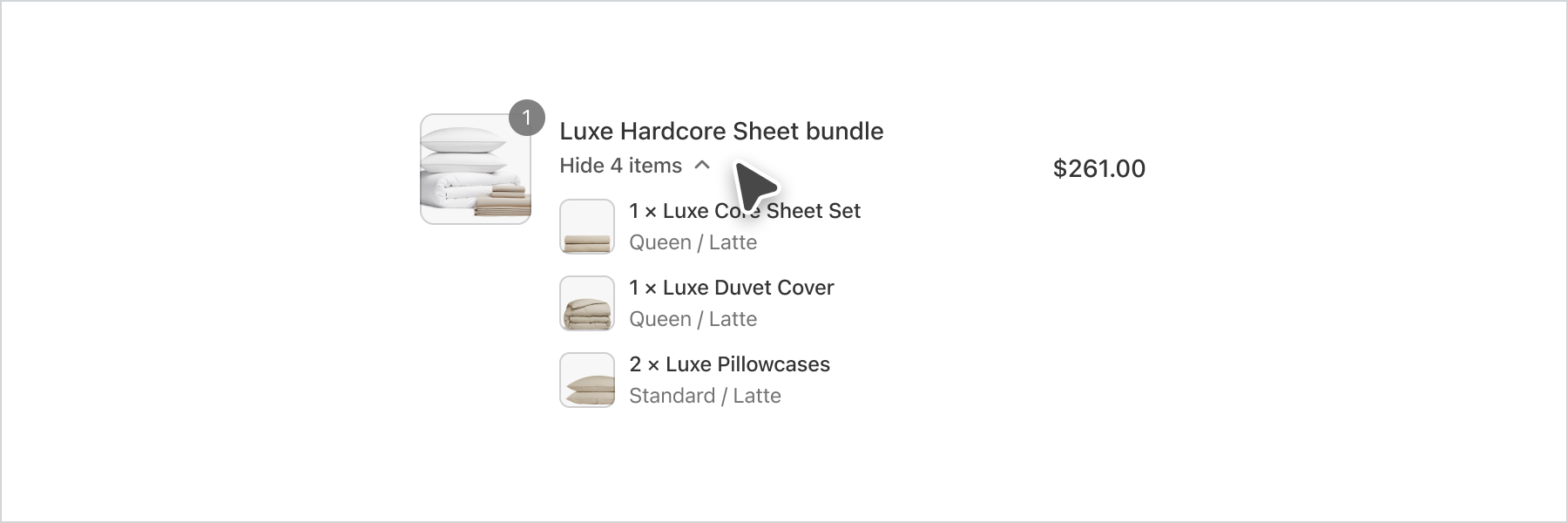

Preview

Examples

Basic Disclosure

React

import {
  reactExtension,
  Disclosure,
  Button,
  View,
} from '@shopify/ui-extensions-react/checkout';

export default reactExtension(
  'purchase.checkout.block.render',
  () => <Extension />,
);

function Extension() {
  return (
    <Disclosure>
      <Button toggles="one">Toggle</Button>
      <View id="one">Content</View>
    </Disclosure>
  );
}

JS

import {
  extension,
  Button,
  View,
  Disclosure,
} from '@shopify/ui-extensions/checkout';

export default extension('purchase.checkout.block.render', (root) => {
  const disclosure = root.createComponent(Disclosure, {}, [
    root.createComponent(Button, {toggles: 'one'}, 'Toggle'),
    root.createComponent(
      View,
      {border: 'base', padding: 'base', id: 'one'},
      'Content',
    ),
  ]);

  root.appendChild(disclosure);
});

Strategies for simplifying layout and aligning content using Disclosure and Inline/Block Layout components.

Description

Use the Disclosure component to simplify the user experience and reveal interfaces only when the customer requests it. It also demonstrates how a combination of inline and block layout components can improve the readability of information. By employing these strategies, users can easily scan and comprehend the content, making for a better user experience overall.

React

import {
  reactExtension,
  View,
  Image,
  Icon,
  Pressable,
  Disclosure,
  InlineLayout,
  BlockStack,
  Text,
  Form,
  TextField,
  Button,
  Divider,
  InlineStack,
} from '@shopify/ui-extensions-react/checkout';

export default reactExtension(
  'purchase.checkout.block.render',
  () => <DisclosureAndAlignment />,
);

export const DisclosureAndAlignment = () => {
  const openIds = ['one'];
  return (
    <View
      maxInlineSize={400}
      cornerRadius="large"
      border="base"
    >
      <BlockStack spacing="none">
        <Disclosure
          defaultOpen="one"
          onToggle={(open) =>
            console.log('onToggle event', open)
          }
        >
          <Pressable toggles="one" padding="base">
            <InlineLayout
              blockAlignment="center"
              spacing="base"
              columns={['auto', 'fill', 'auto']}
            >
              <Icon
                source="gift"
                appearance="subdued"
              />
              Gift message
              <Icon
                source={
                  openIds.includes('one')
                    ? 'chevronUp'
                    : 'chevronDown'
                }
                appearance="subdued"
              />
            </InlineLayout>
          </Pressable>
          <View
            id="one"
            padding={[
              'none',
              'base',
              'base',
              'base',
            ]}
          >
            <Form
              onSubmit={() =>
                console.log('onSubmit event')
              }
            >
              <BlockStack>
                <InlineLayout
                  columns={['fill', 'fill']}
                  spacing="base"
                >
                  <TextField
                    label="From"
                    name="from0"
                    id="from0"
                  />
                  <TextField
                    label="To"
                    name="to0"
                    id="to0"
                  />
                </InlineLayout>
                <TextField
                  label="Message"
                  name="message0"
                  id="message0"
                />
                <View>
                  <Button
                    accessibilityRole="submit"
                    kind="secondary"
                  >
                    Save
                  </Button>
                </View>
              </BlockStack>
            </Form>
          </View>
        </Disclosure>
        <Divider />
        <InlineLayout
          blockAlignment="baseline"
          spacing="base"
          columns={['auto', 'fill', 'auto']}
          padding="base"
        >
          <Icon
            source="profile"
            appearance="subdued"
          />
          <BlockStack spacing="none">
            <InlineStack blockAlignment="center">
              <Text>Verify with</Text>
              <Image source="https://via.placeholder.com/50x15" />
            </InlineStack>
            <Text
              appearance="subdued"
              size="small"
            >
              15% savings for students and
              military
            </Text>
          </BlockStack>
          <Pressable to="https://www.shopify.com">
            <Icon
              source="external"
              appearance="subdued"
            />
          </Pressable>
        </InlineLayout>
      </BlockStack>
    </View>
  );
};

JavaScript

import {
  extension,
  BlockStack,
  View,
  InlineLayout,
  InlineStack,
  Image,
  Pressable,
  Icon,
  Text,
  TextField,
  Form,
  Button,
  Disclosure,
  Divider,
} from '@shopify/ui-extensions/checkout';

export default extension(
  'purchase.checkout.block.render',
  (root) => {
    const openIds = ['one'];

    const pressable = root.createComponent(
      Pressable,
      {
        toggles: 'one',
        padding: 'base',
      },
      [
        root.createComponent(
          InlineLayout,
          {
            blockAlignment: 'center',
            spacing: 'base',
            columns: ['auto', 'fill', 'auto'],
          },
          [
            root.createComponent(Icon, {
              source: 'gift',
              appearance: 'subdued',
            }),
            'Gift message',
            root.createComponent(Icon, {
              source: openIds.includes('one')
                ? 'chevronUp'
                : 'chevronDown',
              size: 'small',
            }),
          ],
        ),
      ],
    );

    const disclosureView = root.createComponent(
      View,
      {
        id: 'one',
        padding: ['none', 'base', 'base', 'base'],
      },
      [
        root.createComponent(
          Form,
          {
            onSubmit: () =>
              console.log('onSubmit event'),
          },
          [
            root.createComponent(BlockStack, {}, [
              root.createComponent(
                InlineLayout,
                {
                  columns: ['fill', 'fill'],
                  spacing: 'base',
                },
                [
                  root.createComponent(
                    TextField,
                    {
                      label: 'From',
                      name: 'from0',
                      id: 'from0',
                    },
                  ),
                  root.createComponent(
                    TextField,
                    {
                      label: 'To',
                      name: 'to0',
                      id: 'to0',
                    },
                  ),
                ],
              ),
              root.createComponent(TextField, {
                label: 'Message',
                name: 'message0',
                id: 'message0',
              }),
              root.createComponent(View, {}, [
                root.createComponent(
                  Button,
                  {
                    accessibilityRole: 'submit',
                    kind: 'secondary',
                  },
                  'Save',
                ),
              ]),
            ]),
          ],
        ),
      ],
    );

    const disclosure = root.createComponent(
      Disclosure,
      {
        defaultOpen: 'one',
        onToggle: (open) =>
          console.log('onToggle event', open),
      },
      [pressable, disclosureView],
    );

    const inlineLayout = root.createComponent(
      InlineLayout,
      {
        blockAlignment: 'baseline',
        spacing: 'base',
        columns: ['auto', 'fill', 'auto'],
        padding: 'base',
      },
      [
        root.createComponent(Icon, {
          source: 'profile',
          appearance: 'subdued',
        }),
        root.createComponent(
          BlockStack,
          {
            spacing: 'none',
          },
          [
            root.createComponent(
              InlineStack,
              {
                blockAlignment: 'center',
              },
              [
                root.createComponent(
                  Text,
                  {},
                  'Verify with',
                ),
                root.createComponent(Image, {
                  source:
                    'https://via.placeholder.com/50x15',
                }),
              ],
            ),
            root.createComponent(
              Text,
              {
                appearance: 'subdued',
                size: 'small',
              },
              '15% savings for students and military',
            ),
          ],
        ),
        root.createComponent(
          Pressable,
          {
            to: 'https://www.shopify.com',
          },
          [
            root.createComponent(Icon, {
              source: 'external',
              appearance: 'subdued',
            }),
          ],
        ),
      ],
    );
    const view = root.createComponent(
      View,
      {
        maxInlineSize: 400,
        cornerRadius: 'large',
        border: 'base',
      },
      [
        root.createComponent(
          BlockStack,
          {
            spacing: 'none',
          },
          [
            disclosure,
            root.createComponent(Divider),
            inlineLayout,
          ],
        ),
      ],
    );

    root.appendChild(view);
  },
);

Anchor to best-practicesBest Practices

Disclosures should be initiated by the buyer.
Use disclosures to hide content until they are relevant to the buyer.
Avoid hiding critical information that buyers need to complete their checkout.
Keep content inside disclosures concise.
Avoid nesting of disclosures.
Keep the activator and the content it toggles in close proximity to each other.
