Map

Use the Map component to provide visual representation of geographic data such as verifying address, package or pickup locations.

Please note that the merchant or partner has to provide an API key and a set of allowed domains where the map would render.

The 3 necessary domains needed are:

https://*.[MERCHANT-DOMAIN].com
https://shop.app
https://shopify.com

Where * is a wildcard. Learn more about match patterns.

Please refer to the Google Maps Platform documentation for more details on how to get an API key.

Anchor to mappropsMapProps

Anchor to accessibilityLabel accessibilityLabel string required: A label to describe the purpose of the map that is announced by screen readers.
Anchor to apiKey apiKey string required: The Google Maps API key.
Anchor to latitude latitude number required: The latitude of the center of the map.
Anchor to longitude longitude number required: The longitude of the center of the map.
Anchor to id id string: The id of the map. This is used to set a unique map id for the Google Maps API. If you don't provide an id, the map component will automatically create a unique one for every map. If you provide it, you need to make sure it's unique.
Anchor to maxBlockSize maxBlockSize < number | `${number}%` | 'fill' >: Adjust the maximum block size.

number: size in pixels.

`${number}%`: size in percentages.

fill: takes all the available space.

See MDN explanation of maxBlockSize.
Anchor to maxInlineSize maxInlineSize < number | `${number}%` | 'fill' >: Adjust the maximum inline size.

number: size in pixels.

`${number}%`: size in percentages.

fill: takes all the available space.

See MDN explanation of maxInlineSize.
Anchor to maxZoom maxZoom number: The maximum zoom level of the map.
Anchor to minBlockSize minBlockSize < number | `${number}%` | 'fill' >: Adjust the block size.

number: size in pixels.

`${number}%`: size in percentages.

fill: takes all the available space.

See MDN explanation of minBlockSize.
Anchor to minInlineSize minInlineSize < number | `${number}%` | 'fill' >: Adjust the minimum inline size.

number: size in pixels.

`${number}%`: size in percentages.

fill: takes all the available space.\

See MDN explanation of minInlineSize.
Anchor to minZoom minZoom number: The minimum zoom level of the map.
Anchor to onBoundsChange onBoundsChange (bounds: ) => void: Callback to run when the map bounds change.
Anchor to onCenterChange onCenterChange (location: ) => void: Callback to run when the map center changes.
Anchor to onDoublePress onDoublePress (location: ) => void: Callback to run when the map is double clicked.
Anchor to onPress onPress (location: ) => void: Callback to run when the map is pressed.
Anchor to onZoomChange onZoomChange (zoom: ) => void: Callback to run when the map zoom changes.
Anchor to zoom zoom number: The zoom level of the map. It must be a number between 0 and 18.

MaybeResponsiveConditionalStyle

A type that represents a value that can be a conditional style. The conditions are based on the viewport size. We highly recommend using the `Style` helper which simplifies the creation of conditional styles. To learn more check out the [conditional styles](/api/checkout-ui-extensions/components/utilities/stylehelper) documentation.

T | ConditionalStyle<T, ViewportSizeCondition>

ConditionalStyle

conditionals
An array of conditional values.
```
ConditionalValue<T, AcceptedConditions>[]
```
default
The default value applied when none of the conditional values specified in `conditionals` are met.
```
T
```

ConditionalValue

conditions
The conditions that must be met for the value to be applied. At least one condition must be specified.
```
AcceptedConditions
```
value
The value that will be applied if the conditions are met.
```
T
```

ViewportSizeCondition

viewportInlineSize
```
{ min: ViewportInlineSize; }
```

ViewportInlineSize

'extraSmall' | 'small' | 'medium' | 'large'

MapBounds

northEast
```
MapLocation
```
southWest
```
MapLocation
```

MapLocation

latitude
```
number
```
longitude
```
number
```

MapZoom

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18

Examples

import {

reactExtension,

Map,

} from '@shopify/ui-extensions-react/checkout';

export default reactExtension(

'purchase.checkout.block.render',

() => <Extension />,

);

function Extension() {

return (

<Map

apiKey="YOUR_GOOGLE_MAPS_API_KEY"

latitude={-28.024}

longitude={140.887}

zoom={4}

accessibilityLabel="Map showing pickup locations"

);

}

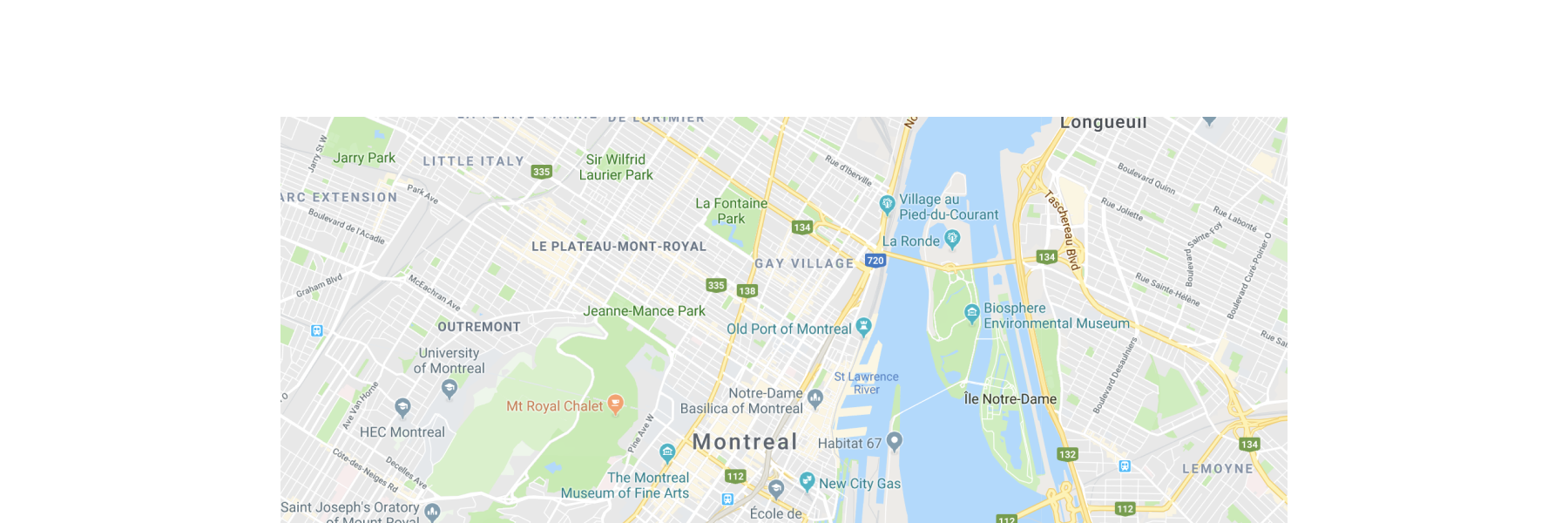

Preview

Examples

Basic Map

React

import {
  reactExtension,
  Map,
} from '@shopify/ui-extensions-react/checkout';

export default reactExtension(
  'purchase.checkout.block.render',
  () => <Extension />,
);

function Extension() {
  return (
    <Map
      apiKey="YOUR_GOOGLE_MAPS_API_KEY"
      latitude={-28.024}
      longitude={140.887}
      zoom={4}
      accessibilityLabel="Map showing pickup locations"
    />
  );
}

JS

import {extension, Map} from '@shopify/ui-extensions/checkout';

export default extension('purchase.checkout.block.render', (root) => {
  const map = root.createComponent(Map, {
    apiKey: 'YOUR_API_KEY',
    accessibilityLabel: 'Map showing pickup locations',
    latitude: -28.024,
    longitude: 140.887,
    zoom: 4,
  });

  root.appendChild(map);
});

Anchor to relatedRelated

ComponentMapMarker

ComponentMapPopover
