ToggleButtonGroup

ToggleButtonGroup allows you to make a single choice out of the number of options provided. This is similar to the ChoiceList component, but without controls such as checkbox or radio button.

You can utilize our layout components to arrange ToggleButtonGroup.

Anchor to togglebuttongrouppropsToggleButtonGroupProps

Anchor to onChange onChange (value: T) => void required: A callback that is run whenever one of the buttons is pressed. This callback is called with a string or array of strings indicating the ids of buttons that should now be selected. When this component is controlled, you must store this value in state and reflect it back in the value prop.
Anchor to value value T required: An id of the selected button.
Anchor to disabled disabled boolean: Whether the button group is disabled.

Examples

import {

reactExtension,

BlockStack,

InlineLayout,

Text,

ToggleButton,

ToggleButtonGroup,

View,

} from '@shopify/ui-extensions-react/checkout';

export default reactExtension(

'purchase.checkout.block.render',

() => <Extension />,

);

function Extension() {

return (

<ToggleButtonGroup

value="none"

onChange={(value) => {

console.log(

`onChange event with value: ${value}`,

);

}}

<View

blockAlignment="center"

inlineAlignment="center"

minBlockSize="fill"

None

</View>

</ToggleButton>

<BlockStack

inlineAlignment="center"

spacing="none"

points

</Text>

</BlockStack>

</ToggleButton>

<BlockStack

inlineAlignment="center"

spacing="none"

points

</Text>

</BlockStack>

</ToggleButton>

<BlockStack

inlineAlignment="center"

spacing="none"

points

</Text>

</BlockStack>

</ToggleButton>

</InlineLayout>

</ToggleButtonGroup>

);

}

Preview

Examples

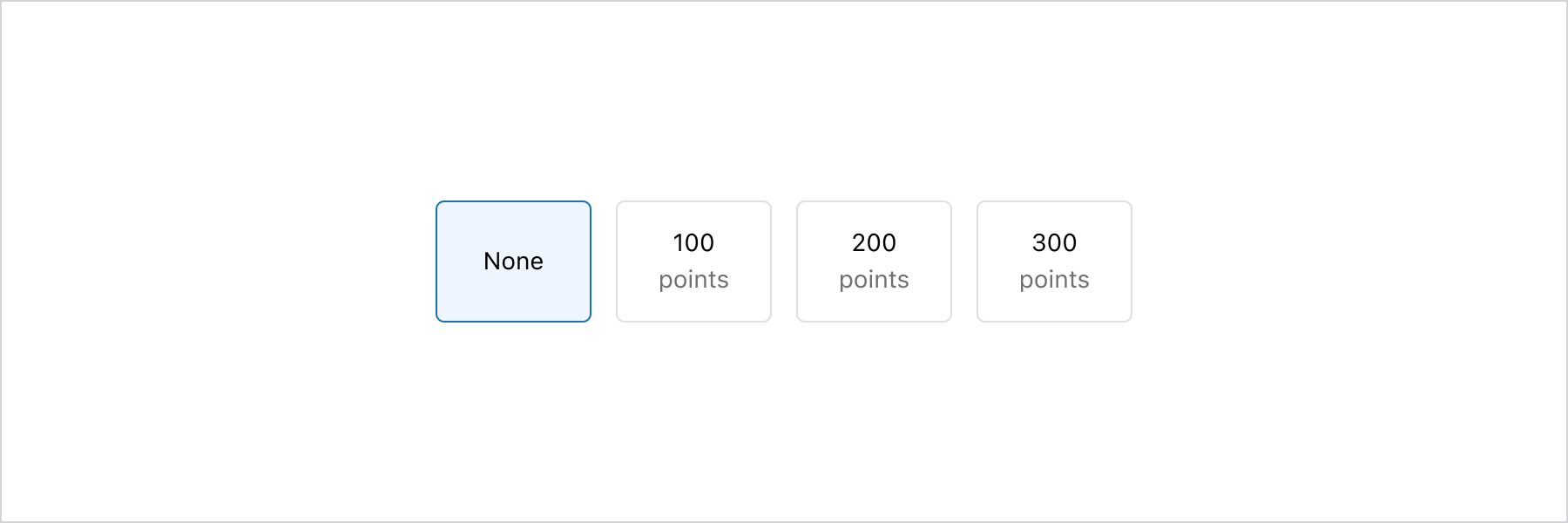

Basic ToggleButtonGroup

React

import {
  reactExtension,
  BlockStack,
  InlineLayout,
  Text,
  ToggleButton,
  ToggleButtonGroup,
  View,
} from '@shopify/ui-extensions-react/checkout';

export default reactExtension(
  'purchase.checkout.block.render',
  () => <Extension />,
);

function Extension() {
  return (
    <ToggleButtonGroup
      value="none"
      onChange={(value) => {
        console.log(
          `onChange event with value: ${value}`,
        );
      }}
    >
      <InlineLayout spacing="base">
        <ToggleButton id="none">
          <View
            blockAlignment="center"
            inlineAlignment="center"
            minBlockSize="fill"
          >
            None
          </View>
        </ToggleButton>
        <ToggleButton id="points-100">
          <BlockStack
            inlineAlignment="center"
            spacing="none"
          >
            <Text>100</Text>
            <Text appearance="subdued">
              points
            </Text>
          </BlockStack>
        </ToggleButton>
        <ToggleButton id="points-200">
          <BlockStack
            inlineAlignment="center"
            spacing="none"
          >
            <Text>200</Text>
            <Text appearance="subdued">
              points
            </Text>
          </BlockStack>
        </ToggleButton>
        <ToggleButton id="points-300">
          <BlockStack
            inlineAlignment="center"
            spacing="none"
          >
            <Text>300</Text>
            <Text appearance="subdued">
              points
            </Text>
          </BlockStack>
        </ToggleButton>
      </InlineLayout>
    </ToggleButtonGroup>
  );
}

JS

import {
  extension,
  ToggleButtonGroup,
  ToggleButton,
  InlineLayout,
  View,
  BlockStack,
  Text,
} from '@shopify/ui-extensions/checkout';

export default extension('purchase.checkout.block.render', (root) => {
  const toggleButtonGroup = root.createComponent(
    ToggleButtonGroup,
    {
      value: 'none',
      onChange: (value) => {
        console.log(`onChange event with value: ${value}`);
      },
    },
    [
      root.createComponent(InlineLayout, {spacing: 'base'}, [
        root.createComponent(
          ToggleButton,
          {id: 'none'},
          root.createComponent(
            View,
            {
              blockAlignment: 'center',
              inlineAlignment: 'center',
              minBlockSize: 'fill',
            },
            'None',
          ),
        ),
        root.createComponent(
          ToggleButton,
          {id: 'points-100'},
          root.createComponent(
            BlockStack,
            {inlineAlignment: 'center', spacing: 'none'},
            [
              root.createComponent(Text, undefined, '100'),
              root.createComponent(Text, {appearance: 'subdued'}, 'points'),
            ],
          ),
        ),
        root.createComponent(
          ToggleButton,
          {id: 'points-200'},
          root.createComponent(
            BlockStack,
            {inlineAlignment: 'center', spacing: 'none'},
            [
              root.createComponent(Text, undefined, '200'),
              root.createComponent(Text, {appearance: 'subdued'}, 'points'),
            ],
          ),
        ),
        root.createComponent(
          ToggleButton,
          {id: 'points-300'},
          root.createComponent(
            BlockStack,
            {inlineAlignment: 'center', spacing: 'none'},
            [
              root.createComponent(Text, undefined, '300'),
              root.createComponent(Text, {appearance: 'subdued'}, 'points'),
            ],
          ),
        ),
      ]),
    ],
  );

  root.appendChild(toggleButtonGroup);
});

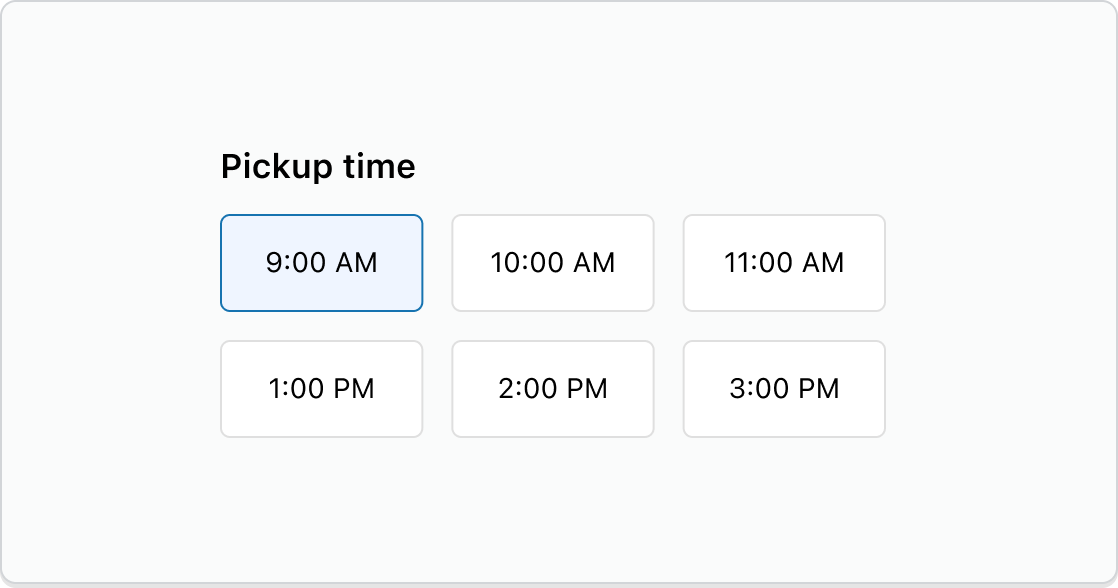

Displaying a small set of time choices

Description

The ToggleButtonGroup component is ideal for a small set of options. It allows for easy scanning of available choices. Also the component’s big tap target makes it a good choice for enhanced mobile experience. However, in a grid layout, having more than 6 ToggleButtons can get overwhelming and take up too much vertical space. When there are more than 6 choices, consider using the [Select](/docs/api/checkout-ui-extensions/components/forms/select) component instead.

React

import {
  reactExtension,
  Grid,
  ToggleButton,
  ToggleButtonGroup,
  View,
} from '@shopify/ui-extensions-react/checkout';

export default reactExtension(
  'purchase.checkout.block.render',
  () => <Extension />,
);

function Extension() {
  return (
    <ToggleButtonGroup
      value="time-9am"
      onChange={(value) => {
        console.log(
          `onChange event with value: ${value}`,
        );
      }}
    >
      <Grid
        columns={['auto', 'auto', 'auto']}
        spacing="base"
      >
        <ToggleButton id="time-9am">
          <View inlineAlignment="center">
            9:00 AM
          </View>
        </ToggleButton>
        <ToggleButton id="time-10am">
          <View inlineAlignment="center">
            10:00 AM
          </View>
        </ToggleButton>
        <ToggleButton id="time-11am">
          <View inlineAlignment="center">
            11:00 AM
          </View>
        </ToggleButton>
        <ToggleButton id="time-1pm">
          <View inlineAlignment="center">
            1:00 PM
          </View>
        </ToggleButton>
        <ToggleButton id="time-2pm">
          <View inlineAlignment="center">
            2:00 PM
          </View>
        </ToggleButton>
        <ToggleButton id="time-3pm">
          <View inlineAlignment="center">
            3:00 PM
          </View>
        </ToggleButton>
      </Grid>
    </ToggleButtonGroup>
  );
}

JavaScript

import {
  extension,
  Grid,
  ToggleButtonGroup,
  ToggleButton,
  View,
} from '@shopify/ui-extensions/checkout';

export default extension(
  'purchase.checkout.block.render',
  (root) => {
    const toggleButtonGroup =
      root.createComponent(
        ToggleButtonGroup,
        {
          value: 'time-9am',
          onChange: (value) => {
            console.log(
              `onChange event with value: ${value}`,
            );
          },
        },
        [
          root.createComponent(
            Grid,
            {
              columns: ['auto', 'auto', 'auto'],
              spacing: 'base',
            },
            [
              root.createComponent(
                ToggleButton,
                {id: 'time-9am'},
                root.createComponent(
                  View,
                  {inlineAlignment: 'center'},
                  '9:00 AM',
                ),
              ),
              root.createComponent(
                ToggleButton,
                {id: 'time-10am'},
                root.createComponent(
                  View,
                  {inlineAlignment: 'center'},
                  '10:00 AM',
                ),
              ),
              root.createComponent(
                ToggleButton,
                {id: 'time-11am'},
                root.createComponent(
                  View,
                  {inlineAlignment: 'center'},
                  '11:00 AM',
                ),
              ),
              root.createComponent(
                ToggleButton,
                {id: 'time-1pm'},
                root.createComponent(
                  View,
                  {inlineAlignment: 'center'},
                  '1:00 PM',
                ),
              ),
              root.createComponent(
                ToggleButton,
                {id: 'time-2pm'},
                root.createComponent(
                  View,
                  {inlineAlignment: 'center'},
                  '2:00 PM',
                ),
              ),
              root.createComponent(
                ToggleButton,
                {id: 'time-3pm'},
                root.createComponent(
                  View,
                  {inlineAlignment: 'center'},
                  '3:00 PM',
                ),
              ),
            ],
          ),
        ],
      );

    root.appendChild(toggleButtonGroup);
  },
);

Anchor to best-practicesBest Practices

ToggleButtonGroup is a component designed for streamlined single-choice selection, without any additional details associated with the selection. If you need to allow multiple selections or present associated details, it is recommended to use ChoiceList instead.

Anchor to Label and orderLabel and order

Use descriptive and concise labels for each Toggle button, and maintain consistency in the terminology used across options. Arrange the Toggle buttons in a logical order that makes sense to users. Consider factors such as alphabetical order, chronological order, or order of importance, depending on the context.

Anchor to Number of Toggle buttonsNumber of Toggle buttons

Avoid overwhelming users with too many Toggle buttons. Ideally, limit the number of choices to a manageable amount, typically between 2 and 7, to prevent decision fatigue and maintain clarity.
