SearchBar
component

The search bar lets merchants enter search queries for objects throughout the app.

Anchor to searchbarSearchBar

Anchor to onSearch onSearch (value: string) => void required: A callback when the search button is tapped.
Anchor to initialValue initialValue string: The initial text value in the search bar. This is different from placeHolder, which is displayed in the search bar when the search bar doesn't have a populated string.
Anchor to onTextChange onTextChange (value: string) => void: A callback containing the new text value of the search bar.
Anchor to onFocus onFocus () => void: A callback when the input is focused.
Anchor to editable editable boolean: Whether the text can be changed.
Anchor to placeholder placeholder string: The placeholder value to display in the search bar when no text is entered.

SearchBarProps

initialValue
The initial text value in the search bar. This is different from `placeHolder`, which is displayed in the search bar when the search bar doesn't have a populated string.
```
string
```
onTextChange
A callback containing the new text value of the search bar.
```
(value: string) => void
```
onSearch
A callback when the search button is tapped.
```
(value: string) => void
```
onFocus
A callback when the input is focused.
```
() => void
```
editable
Whether the text can be changed.
```
boolean
```
placeholder
The placeholder value to display in the search bar when no text is entered.
```
string
```

export interface SearchBarProps {
  /**
   * The initial text value in the search bar. This is different from `placeHolder`, which is displayed in the search bar when the search bar doesn't have a populated string.
   */
  initialValue?: string;
  /**
   * A callback containing the new text value of the search bar.
   */
  onTextChange?: (value: string) => void;
  /**
   * A callback when the search button is tapped.
   */
  onSearch: (value: string) => void;
  /**
   * A callback when the input is focused.
   */
  onFocus?: () => void;
  /**
   * Whether the text can be changed.
   */
  editable?: boolean;
  /**
   * The placeholder value to display in the search bar when no text is entered.
   */
  placeholder?: string;
}

Was this section helpful?

SearchBar

import React from 'react';

import {

reactExtension,

Text,

Screen,

SearchBar,

ScrollView,

} from '@shopify/ui-extensions-react/point-of-sale';

const SmartGridModal = () => {

const [searched, setSearched] =

React.useState('');

return (

<SearchBar

onSearch={setSearched}

editable

initialValue="initial value"

placeholder="placeholder"

<Text>Searched: {searched}</Text>

</ScrollView>

</Screen>

);

};

export default reactExtension(

'pos.home.modal.render',

() => {

return <SmartGridModal />;

);

examples

SearchBar

React

import React from 'react';
import {
  reactExtension,
  Text,
  Screen,
  SearchBar,
  ScrollView,
} from '@shopify/ui-extensions-react/point-of-sale';

const SmartGridModal = () => {
  const [searched, setSearched] =
    React.useState('');

  return (
    <Screen name="SearchBar" title="SearchBar">
      <ScrollView>
        <SearchBar
          onSearch={setSearched}
          editable
          initialValue="initial value"
          placeholder="placeholder"
        />
        <Text>Searched: {searched}</Text>
      </ScrollView>
    </Screen>
  );
};

export default reactExtension(
  'pos.home.modal.render',
  () => {
    return <SmartGridModal />;
  },
);

TS

import {
  extension,
  Screen,
  ScrollView,
  SearchBar,
  Text,
} from '@shopify/ui-extensions/point-of-sale';

export default extension(
  'pos.home.modal.render',
  (root) => {
    const mainScreen = root.createComponent(
      Screen,
      {name: 'SearchBar', title: 'SearchBar'},
    );
    const scrollView =
      root.createComponent(ScrollView);
    const text = root.createComponent(Text, null);

    const onSearch = (value: string) => {
      text.replaceChildren(`Searched: ${value}`);
    };

    const searchBar = root.createComponent(
      SearchBar,
      {
        onSearch,
        editable: true,
        initialValue: 'initial value',
        placeholder: 'placeholder',
      },
    );

    scrollView.append(searchBar);
    scrollView.append(text);

    mainScreen.append(scrollView);
    root.append(mainScreen);
  },
);

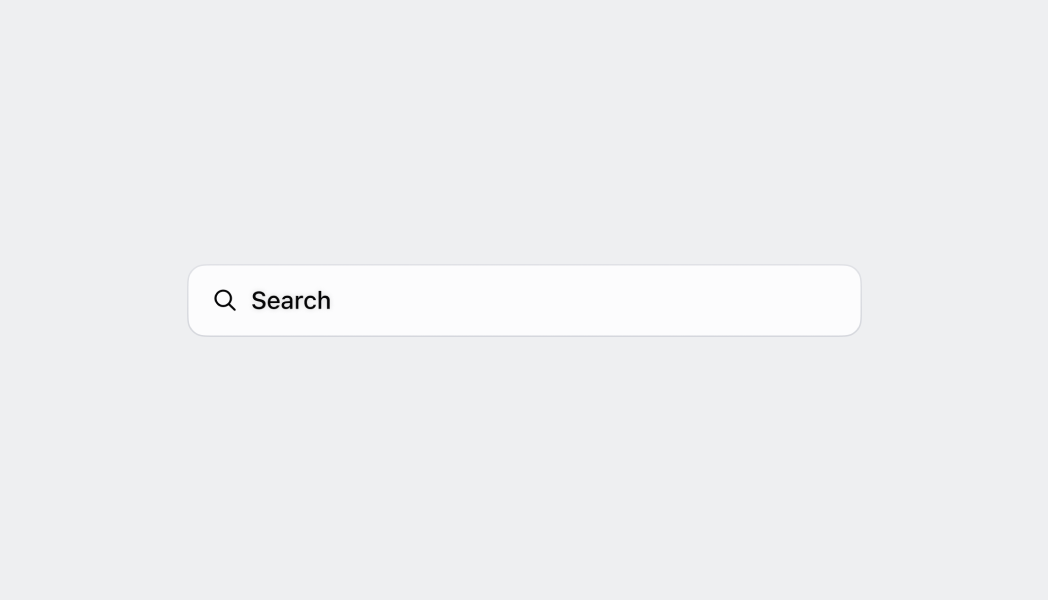

Preview

Anchor to guidelinesGuidelines

The global search bar should appear at the very top of a view, above the header. This is because it searches for things beyond the scope of that page.
The inline search bar should appear at the top of a list, but under the header.
The search bar should be sticky and remain at the top of the page when the merchant scrolls.
When a merchant selects the search bar, the bar enters the focused state.
When entering the focused state, the border turns blue and the search icon changes to a back arrow icon. Selecting the back arrow lets merchants return to the default state.
If it's an inline search bar, entering focused state should also move the search bar to the top of the screen.
When a merchant starts entering a search query, the bar enters the filled state.
Selecting the X deletes the merchant's search query, but keeps them in the focused state so that they can immediately enter a new search query.
