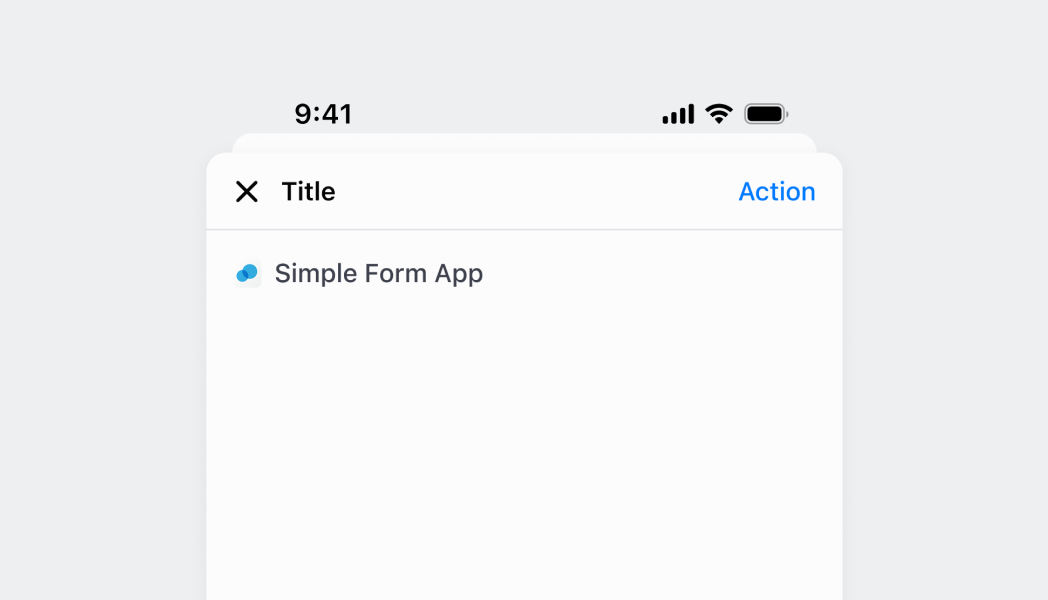

Screen

A component used in the root of a modal extension to define a screen.

import React from 'react'

import { Screen, Text, Navigator, reactExtension, Button, useApi } from '@shopify/ui-extensions-react/point-of-sale';

const Modal = () => {
  const api = useApi<'pos.home.modal.render'>();

  return (
    <Navigator>
      <Screen name="Home" title="Home">
        <Text>Home screen</Text>
        <Button title="Navigate to details" onPress={() => api.navigation.navigate('Details')} />
      </Screen>
      <Screen name="Details" title="Details">
        <Text>Details screen</Text>
      </Screen>
    </Navigator>
  )
}

export default reactExtension('pos.home.modal.render', () => <Modal />);

import {
  extension,
  Screen,
  Navigator,
  Text,
  Button,
} from '@shopify/ui-extensions/point-of-sale';

export default extension('pos.home.modal.render', (root, api) => {
  const homeScreen = root.createComponent(Screen, {
    name: 'Home',
    title: 'Home',
  });

  const homeText = root.createComponent(Text);
  homeText.append('Home screen');
  homeScreen.append(homeText);

  const navigateButton = root.createComponent(Button, {
    title: 'Navigate to details',
    onPress: () => api.navigation.navigate('Details'),
  });
  homeScreen.append(navigateButton);

  const detailsScreen = root.createComponent(Screen, {
    name: 'Details',
    title: 'Details',
  });

  const detailsText = root.createComponent(Text);
  detailsText.append('Details screen');
  detailsScreen.append(detailsText);

  const navigator = root.createComponent(Navigator);
  navigator.append(homeScreen);
  navigator.append(detailsScreen);
  root.append(navigator);
});

Screen

ScreenProps

Represents a screen in the navigation stack.

isLoading

Displays a loading indicator when `true`. Set this to `true` when performing an asynchronous task, and then to false when the data becomes available to the UI.

name

Used to identify this screen as a destination in the navigation stack.

onNavigate

Triggered when the screen is navigated to.

onNavigateBack

Triggered when the user navigates back from this screen. Runs after screen is unmounted.

onReceiveParams

A callback that gets triggered when the navigation event completes and the screen receives the parameters.

overrideNavigateBack

A callback that allows you to override the secondary navigation action. Runs when screen is mounted.

presentation

Dictates how the `Screen` will be presented when navigated to.

secondaryAction

Displays a secondary action button on the screen.

title

The title of the screen which will be displayed on the UI.

ScreenPresentationProps

Represents the presentation of a screen in the navigation stack.

sheet

Displays the screen from the bottom on `navigate` when `true`.

SecondaryActionProps

Represents the secondary action button of a screen in the navigation stack.

isEnabled

Sets whether the action can be tapped.

onPress

Triggered when the secondary action button is pressed.

text

Displays the name of the secondary action in the action bar.

ScreenPresentationProps

ScreenPresentationProps

Represents the presentation of a screen in the navigation stack.

sheet

Displays the screen from the bottom on `navigate` when `true`.

SecondaryActionProps

SecondaryActionProps

Represents the secondary action button of a screen in the navigation stack.

isEnabled

Sets whether the action can be tapped.

onPress

Triggered when the secondary action button is pressed.

text

Displays the name of the secondary action in the action bar.

Examples

A component used in the root of a modal extension to define a screen.

import React, {useState} from 'react';

import {
  Screen,
  Text,
  Navigator,
  reactExtension,
  Button,
  useApi,
} from '@shopify/ui-extensions-react/point-of-sale';

const Modal = () => {
  return (
    <Navigator>
      <HomeScreen />
      <DetailsScreen />
    </Navigator>
  );
};

const HomeScreen = () => {
  const api = useApi<'pos.home.modal.render'>();
  return (
    <Screen name="Home" title="Home">
      <Text>Home screen</Text>
      <Button
        title="Navigate to details"
        onPress={() => api.navigation.navigate('Details', {orderId: '123'})}
      />
    </Screen>
  );
};

const DetailsScreen = () => {
  const [params, setParams] = useState<pos.home.modal.render>();

  return (
    <Screen
      name="Details"
      title="Details"
      presentation={{sheet: true}}
      onReceiveParams={setParams}
    >
      <Text>{`Order ID: ${params.orderId}`}</Text>
    </Screen>
  );
};

export default reactExtension('pos.home.modal.render', () => <Modal />);

import {
  extension,
  Screen,
  Navigator,
  Text,
  Button,
} from '@shopify/ui-extensions/point-of-sale';

export default extension('pos.home.modal.render', (root, api) => {
  const homeScreen = root.createComponent(Screen, {
    name: 'Home',
    title: 'Home',
  });

  const homeText = root.createComponent(Text);
  homeText.append('Home screen');
  homeScreen.append(homeText);

  const navigateButton = root.createComponent(Button, {
    title: 'Navigate to details',
    onPress: () => api.navigation.navigate('Details', {orderId: '123'}),
  });
  homeScreen.append(navigateButton);

  const detailsText = root.createComponent(Text);

  const detailsScreen = root.createComponent(Screen, {
    name: 'Details',
    title: 'Details',
    onReceiveParams: (params) => {
      detailsText.replaceChildren(`Order ID: ${params.orderId}`);
    },
  });

  detailsScreen.append(detailsText);

  const navigator = root.createComponent(Navigator);
  navigator.append(homeScreen);
  navigator.append(detailsScreen);
  root.append(navigator);
});

import React, {useState} from 'react';

import {
  Screen,
  Text,
  Navigator,
  reactExtension,
  Button,
  useApi,
} from '@shopify/ui-extensions-react/point-of-sale';

const Modal = () => {
  return (
    <Navigator>
      <HomeScreen />
      <DetailsScreen />
    </Navigator>
  );
};

const HomeScreen = () => {
  const api = useApi<'pos.home.modal.render'>();
  return (
    <Screen name="Home" title="Home">
      <Text>Home screen</Text>
      <Button
        title="Navigate to details"
        onPress={() => api.navigation.navigate('Details', {orderId: '123'})}
      />
    </Screen>
  );
};

const DetailsScreen = () => {
  const [params, setParams] = useState<pos.home.modal.render>();

  return (
    <Screen
      name="Details"
      title="Details"
      presentation={{sheet: true}}
      onReceiveParams={setParams}
    >
      <Text>{`Order ID: ${params.orderId}`}</Text>
    </Screen>
  );
};

export default reactExtension('pos.home.modal.render', () => <Modal />);

import {
  extension,
  Screen,
  Navigator,
  Text,
  Button,
} from '@shopify/ui-extensions/point-of-sale';

export default extension('pos.home.modal.render', (root, api) => {
  const homeScreen = root.createComponent(Screen, {
    name: 'Home',
    title: 'Home',
  });

  const homeText = root.createComponent(Text);
  homeText.append('Home screen');
  homeScreen.append(homeText);

  const navigateButton = root.createComponent(Button, {
    title: 'Navigate to details',
    onPress: () => api.navigation.navigate('Details', {orderId: '123'}),
  });
  homeScreen.append(navigateButton);

  const detailsText = root.createComponent(Text);

  const detailsScreen = root.createComponent(Screen, {
    name: 'Details',
    title: 'Details',
    onReceiveParams: (params) => {
      detailsText.replaceChildren(`Order ID: ${params.orderId}`);
    },
  });

  detailsScreen.append(detailsText);

  const navigator = root.createComponent(Navigator);
  navigator.append(homeScreen);
  navigator.append(detailsScreen);
  root.append(navigator);
});

import React from 'react'

import { Screen, Text, Navigator, reactExtension, Button, useApi } from '@shopify/ui-extensions-react/point-of-sale';

const Modal = () => {
  const api = useApi<'pos.home.modal.render'>();

  return (
    <Navigator>
      <Screen name="Home" title="Home">
        <Text>Home screen</Text>
        <Button title="Navigate to details" onPress={() => api.navigation.navigate('Details')} />
      </Screen>
      <Screen name="Details" title="Details" presentation={{sheet: true}}>
        <Text>Details screen</Text>
      </Screen>
    </Navigator>
  )
}

export default reactExtension('pos.home.modal.render', () => <Modal />);

import {
  extension,
  Screen,
  Navigator,
  Text,
  Button,
} from '@shopify/ui-extensions/point-of-sale';

export default extension('pos.home.modal.render', (root, api) => {
  const homeScreen = root.createComponent(Screen, {
    name: 'Home',
    title: 'Home',
  });

  const homeText = root.createComponent(Text);
  homeText.append('Home screen');
  homeScreen.append(homeText);

  const navigateButton = root.createComponent(Button, {
    title: 'Navigate to details',
    onPress: () => api.navigation.navigate('Details'),
  });
  homeScreen.append(navigateButton);

  const detailsScreen = root.createComponent(Screen, {
    name: 'Details',
    title: 'Details',
    presentation: {sheet: true},
  });

  const detailsText = root.createComponent(Text);
  detailsText.append('Details screen');
  detailsScreen.append(detailsText);

  const navigator = root.createComponent(Navigator);
  navigator.append(homeScreen);
  navigator.append(detailsScreen);
  root.append(navigator);
});

import React from 'react'

import { Screen, Text, Navigator, reactExtension, Button, useApi } from '@shopify/ui-extensions-react/point-of-sale';

const Modal = () => {
  const api = useApi<'pos.home.modal.render'>();

  return (
    <Navigator>
      <Screen name="Home" title="Home">
        <Text>Home screen</Text>
        <Button title="Navigate to details" onPress={() => api.navigation.navigate('Details')} />
      </Screen>
      <Screen name="Details" title="Details" presentation={{sheet: true}}>
        <Text>Details screen</Text>
      </Screen>
    </Navigator>
  )
}

export default reactExtension('pos.home.modal.render', () => <Modal />);

import {
  extension,
  Screen,
  Navigator,
  Text,
  Button,
} from '@shopify/ui-extensions/point-of-sale';

export default extension('pos.home.modal.render', (root, api) => {
  const homeScreen = root.createComponent(Screen, {
    name: 'Home',
    title: 'Home',
  });

  const homeText = root.createComponent(Text);
  homeText.append('Home screen');
  homeScreen.append(homeText);

  const navigateButton = root.createComponent(Button, {
    title: 'Navigate to details',
    onPress: () => api.navigation.navigate('Details'),
  });
  homeScreen.append(navigateButton);

  const detailsScreen = root.createComponent(Screen, {
    name: 'Details',
    title: 'Details',
    presentation: {sheet: true},
  });

  const detailsText = root.createComponent(Text);
  detailsText.append('Details screen');
  detailsScreen.append(detailsText);

  const navigator = root.createComponent(Navigator);
  navigator.append(homeScreen);
  navigator.append(detailsScreen);
  root.append(navigator);
});
