Orders that are created through third-party marketplaces, like Facebook or Google, use [Shopify Payments](https://help.shopify.com/manual/payments/shopify-payments) as the payment processor.

This guide describes a high-level, recommended workflow for using the GraphQL Admin API to track orders placed through third-party marketplaces.

> Caution:
> If you maintain a third-party app or Shopify Flow workflow that relies on [`Order`](/docs/api/admin-graphql/latest/objects/Order) and [`Fulfillment`](/docs/api/admin-graphql/latest/objects/Fulfillment) API objects for order automation, then you should review and implement the recommendations in this guide to make sure that your apps and workflows continue to work as expected.

## Requirements

- Your app can make authenticated requests to the [GraphQL Admin API](/docs/api/admin-graphql).
- Your store has existing [orders](/docs/api/admin-graphql/latest/objects/Order) that are unfulfilled. If you need to make changes to an unfulfilled item, then you can [edit an order](/docs/apps/build/orders-fulfillment/order-management-apps/edit-orders).
- You're familiar with the [API objects](/docs/apps/build/orders-fulfillment/order-management-apps#api-objects-and-relationships) that pertain to fulfillment orders.
- You've met Shopify's [protected customer data requirements](/docs/apps/launch/protected-customer-data).


## How it works

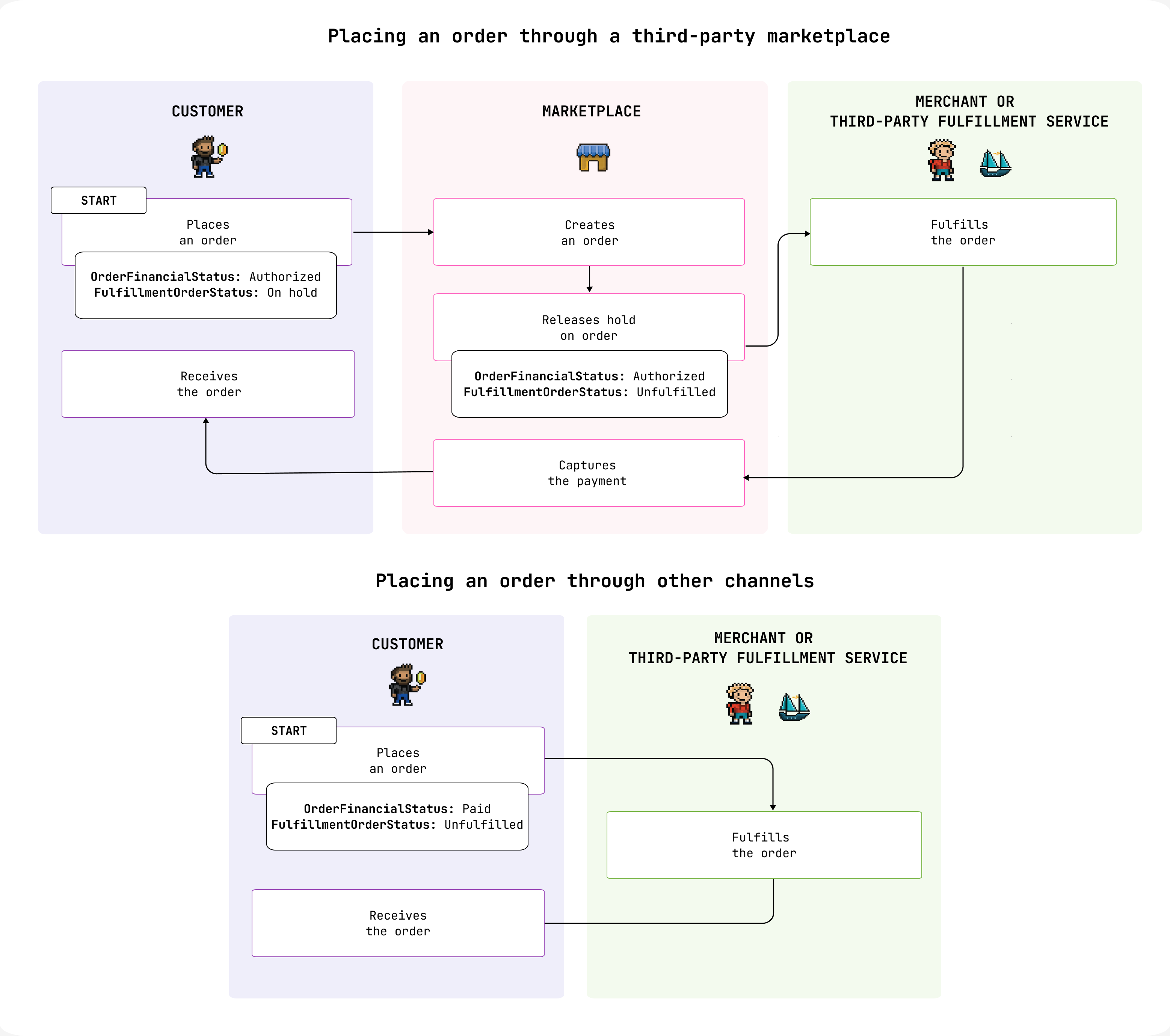

Orders that are placed through third-party marketplaces and orders placed from other channels go through different workflows. The following diagram illustrates the differences between the workflows:

<figure class="figure"><img src="https://cdn.shopify.com/shopifycloud/shopify_dev/assets/apps/fulfillments/marketplace-order-fulfillment-vs-other-channels-fulfillment-d4341e9992f1d5e6b45a56958fbb5b45863e63237d49b9c9158847e4c706532d.png" class="lazyload" alt="A diagram of the workflow for orders placed through third-party marketplaces and orders placed through other channels." width="100%" height="2759"></figure>

### Orders placed through third-party marketplaces

The following workflow considerations apply for orders that are placed through third-party marketplaces:

- **Orders aren't created with automatically captured transactions**.

    Merchants have to fulfill an order before the transaction is captured automatically and the order is marked as paid. Transaction capture is initiated by the third-party marketplace.

- **Orders can't be fulfilled immediately**.

    They must be held until a period between 30 minutes and 24 hours has passed before they can be fulfilled. This is to account for customer cancellation, payment authorization, and fraud and risk analysis.

    From the time that a payment is authorized until it's captured, merchants can't perform the following actions on an order:

    - Change the destination address
    - Edit the order
    - Issue refunds for custom amounts
    - Capture the payment manually

### Orders placed through other channels

For orders placed through other channels, transactions are automatically captured before the order is fulfilled. Merchants or third-party fulfillment services can also immediately act on orders to begin the fulfillment process.

To learn more about fulfillment workflows for orders placed through other channels, refer to the following guides:

- [Manage fulfillments as an order management app](/docs/apps/build/orders-fulfillment/order-management-apps/build-fulfillment-solutions)
- [Manage fulfillments as a fulfillment service app](/docs/apps/build/orders-fulfillment/fulfillment-service-apps/build-for-fulfillment-services)

## Step 1: Migrate your app to use fulfillment orders

In Shopify, the [`FulfillmentOrder`](/docs/api/admin-graphql/latest/objects/FulfillmentOrder) object models an end-to-end fulfillment process and is available in the GraphQL Admin API. The `FulfillmentOrder` object enables fulfillment data to sync accurately between Shopify and apps.

> Deprecated:
> By API version 2023-07, all apps should be using the [`FulfillmentOrder`](/docs/api/admin-graphql/latests/objects/FulfillmentOrder) object to manage fulfillments.
> Apps using the following GraphQL Admin API objects to fulfill orders are using a legacy workflow that is no longer supported as of API version 2022-07:
>
> - [`Order`](/docs/api/admin-graphql/latest/objects/Order)
> - [`Fulfillment`](/docs/api/admin-graphql/latest/objects/Fulfillment)


To learn how to migrate your app, refer to [Migrate to fulfillment orders](/docs/apps/build/orders-fulfillment/migrate-to-fulfillment-orders).

## Step 2: Determine the source channel of an order

You can use the [`DraftOrderInput`](/docs/api/admin-graphql/latest/input-objects/DraftOrderInput) input object to determine the source channel of an order.

> Note:
> For an order to be correctly attributed to a channel, you must [register the channels](https://forms.gle/koDici5wXhXAdhe17) that your app is managing. After that, or if your app already has its channels registered, you can refer to the list of `source_name` values in the [Partner Dashboard](https://partners.shopify.com/), on the app's Marketplace extension.

### Identify orders processed with Shopify Payments or Facebook Payments

To identify an order that was processed with Shopify Payments or Facebook Payments, you can retrieve the order using the [GraphQL Admin API](/docs/api/admin-graphql/latest/queries/order#section-examples) and review the information in specific response fields.

The following table lists the response fields and values that you can review when you retrieve an order:

<table>
  <caption>GraphQL order response fields and values</caption>
  <tr>
    <th scope="col">Field</th>
    <th scope="col">Shopify Payments value</th>
    <th scope="col">Facebook Payments value</th>
  </tr>
  <tr scope="row">
    <td><code>displayFulfillmentStatus</code></td>
    <td>ON_HOLD</td>
    <td>UNFULFILLED</td>
  </tr>
  <tr scope="row">
    <td><code>displayFinancialStatus</code></td>
    <td>AUTHORIZED</td>
    <td>PAID</td>
  </tr>
  <tr scope="row">
    <td><code>paymentGatewayNames</code></td>
    <td>["shopify_payments"]</td>
    <td>["instagram"]</td>
  </tr>
</table>

### Considerations

- Because orders that are placed through third-party marketplaces use Shopify Payments instead of a unique payment gateway, the `gateway` value doesn't reflect the channel in which the order is created. Fields like `reference` and `source_identifier` aren't guaranteed across different apps.

- Orders that are created using the GraphQL Admin API can be assigned any of the `source_name` values that are listed in the Partner Dashboard.

    Use the `source_name` of an order to determine its channel source. The `source_name` property can be set only during order creation. It's not writeable afterwards.

    Alternatively, orders can be assigned a custom string or left unspecified:

    - If `source_name` is a custom string, then the order is unattributed.
    - If `source_name` is unspecified, then new orders are assigned the value of your app's ID.



## Step 3: Determine if the order can be fulfilled

You can use the [order financial status](#order-financial-status) and [fulfillment order status](#fulfillment-order-status) to determine if an order should be fulfilled. The following table describes the fields or properties, values, and webhooks that you can use to determine if an order can be fulfilled:

<table>
  <caption>Fields and values in the GraphQL Admin API</caption>
  <tr>
    <th scope="col">Object</th>
    <th scope="col">Field</th>
    <th scope="col">Value</th>
    <th scope="col">Webhooks</th>
  </tr>
  <tr scope="row">
    <td><a href="/docs/api/admin-graphql/latest/objects/Order">Order</a></td>
    <td><code>displayFinancialStatus</code></td>
    <td>AUTHORIZED or PAID</td>
    <td><code>orders/updated</code></td>
  </tr>
  <tr scope="row">
    <td><a href="/docs/api/admin-graphql/latest/objects/FulfillmentOrder">FulfillmentOrder</a></td>
    <td><code>status</code></td>
    <td>OPEN</td>
    <td><code>fulfillment_orders/<br>order_routing_complete</code>
    <br/><br/><code>fulfillment_orders/<br>scheduled_fulfillment_order_ready</code>
    <br/><br/><code>fulfillment_orders/<br>hold_released</code><br/><br/>(API version 2023-01 and higher)</td>
  </tr>
</table>

### Order financial status

Sales channel apps for third-party marketplaces require that an order is fulfilled before payments are automatically captured by the marketplace.

To prevent the expiration of authorized payments, a post-order workflow shouldn't use payment captured as the condition for fulfillment. Instead, determine if an order has payment authorization (`"status": "authorized"`) and an open fulfillment order (`"status": "open"`) before fulfillment. You can do this by reviewing the following information the `displayFinancialStatus` field in the [GraphQL Admin API `Order` object](/docs/api/admin-graphql/latest/objects/order).

### Fulfillment order status

A fulfillment order is ready for fulfillment when its status is open. For more information about how a fulfillment order transitions to different statuses, refer to [Statuses](/docs/apps/build/orders-fulfillment/order-management-apps#statuses).

Each fulfillment order includes a list of supported fulfillment order actions to determine which actions it can take. For more information about fulfillment order actions, refer to [determine which actions to take](/docs/apps/build/orders-fulfillment/order-management-apps/build-fulfillment-solutions#step-4-determine-which-actions-to-take).

### Considerations

- You can't use `line_items.fulfillable_quantity` to determine if an order is fulfillable if the fulfillment order is on hold. The value `0` is returned.

- Check the `status` of the fulfillment order before you create a fulfillment following an `order/create` webhook. If the `status` is `on_hold`, then the API request to create a fulfillment fails.

- Avoid using a predetermined value for the on-hold time period. This value differs across marketplaces.

- Avoid using the `gateway` field or property to determine if an order is created through a channel.

    For example, after [migrating your app](#step-1-migrate-your-app-to-use-fulfillment-orders), the `gateway` value of an order created on the Facebook sales channel app changes from `instagram/facebook` to `shopify_payments`. Instead, use `source_name` to determine the source of an order.

## Best practices

The following section provides some best practices for tracking orders that are placed through third-party marketplaces.

### Don't rely on order creation events to initiate fulfillments

Avoid workflows that depend on the `orders/create`, `order_transactions/create` or `order/paid` webhook events to initiate fulfillments.

Instead, use the `fulfillment_orders/ready_to_fulfill` webhook (available only in the unstable version of the API) and the `FulfillmentOrder` response body to determine if a fulfillment order is ready for fulfillment.

### Support Facebook Payments and Shopify Payments workflows

During the transition, apps need to support both the Facebook Payments and Shopify Payments workflows. For the transition period, we recommend determining the post-order workflow based on the gateway.

Orders that are created through a sales channel app on a Shopify Payments-enabled store will see transactions created in an authorized state.
Orders have to complete fulfillment before payment is captured automatically by the marketplace. During the transition period, create a condition check on the payment gateways value to determine the post-order workflow.

## Next steps

- Learn how to [manage fulfillments as an order management app](/docs/apps/build/orders-fulfillment/order-management-apps/build-fulfillment-solutions).
- Learn how to [manage fulfillments as a fulfillment service app](/docs/apps/build/orders-fulfillment/fulfillment-service-apps/build-for-fulfillment-services).
- [Edit existing orders](/docs/apps/build/orders-fulfillment/order-management-apps/edit-orders) using the GraphQL Admin API.
