MapPopover

MapPopover provides additional information or context about a specific location or point of interest on a map.

Anchor to mappopoverpropsMapPopoverProps

Anchor to id id string: A unique identifier for the component.
Anchor to onClose onClose () => void: Callback to run when the Popover is closed.
Anchor to onOpen onOpen () => void: Callback to run when the Popover is opened.

MapPopoverProps

id
A unique identifier for the component.
```
string
```
onClose
Callback to run when the Popover is closed.
```
() => void
```
onOpen
Callback to run when the Popover is opened.
```
() => void
```

export interface MapPopoverProps extends IdProps {
  /**
   * Callback to run when the Popover is closed.
   */
  onClose?(): void;
  /**
   * Callback to run when the Popover is opened.
   */
  onOpen?(): void;
}

Was this section helpful?

Basic MapPopover

import {

reactExtension,

Map,

MapMarker,

MapPopover,

} from '@shopify/ui-extensions-react/checkout';

export default reactExtension(

'purchase.checkout.block.render',

() => <Extension />,

);

function Extension() {

return (

<Map

apiKey="YOUR_GOOGLE_MAPS_API_KEY"

latitude={-28.024}

longitude={140.887}

zoom={4}

accessibilityLabel="Map"

<MapMarker

latitude={-28.024}

longitude={140.887}

accessibilityLabel="Map marker for Innamincka, Australia"

overlay={

Blue Mountains National Park store

</MapPopover>

}

</Map>

);

}

examples

Basic MapPopover

React

import {
  reactExtension,
  Map,
  MapMarker,
  MapPopover,
} from '@shopify/ui-extensions-react/checkout';

export default reactExtension(
  'purchase.checkout.block.render',
  () => <Extension />,
);

function Extension() {
  return (
    <Map
      apiKey="YOUR_GOOGLE_MAPS_API_KEY"
      latitude={-28.024}
      longitude={140.887}
      zoom={4}
      accessibilityLabel="Map"
    >
      <MapMarker
        latitude={-28.024}
        longitude={140.887}
        accessibilityLabel="Map marker for Innamincka, Australia"
        overlay={
          <MapPopover>
            Blue Mountains National Park store
          </MapPopover>
        }
      />
    </Map>
  );
}

JS

import {
  extension,
  Map,
  MapMarker,
  MapPopover,
} from '@shopify/ui-extensions/checkout';

export default extension('purchase.checkout.block.render', (root) => {
  const popoverFragment = root.createFragment();
  const popover = root.createComponent(
    MapPopover,
    {},
    'Blue Mountains National Park store',
  );
  popoverFragment.appendChild(popover);
  const map = root.createComponent(
    Map,
    {
      apiKey: 'YOUR_API_KEY',
      accessibilityLabel: 'Map',
      latitude: -28.024,
      longitude: 140.887,
      zoom: 4,
    },
    [
      root.createComponent(MapMarker, {
        latitude: -28.024,
        longitude: 140.887,
        accessibilityLabel: 'Map marker for Innamincka, Australia',
        overlay: popoverFragment,
      }),
    ],
  );

  root.appendChild(map);
});

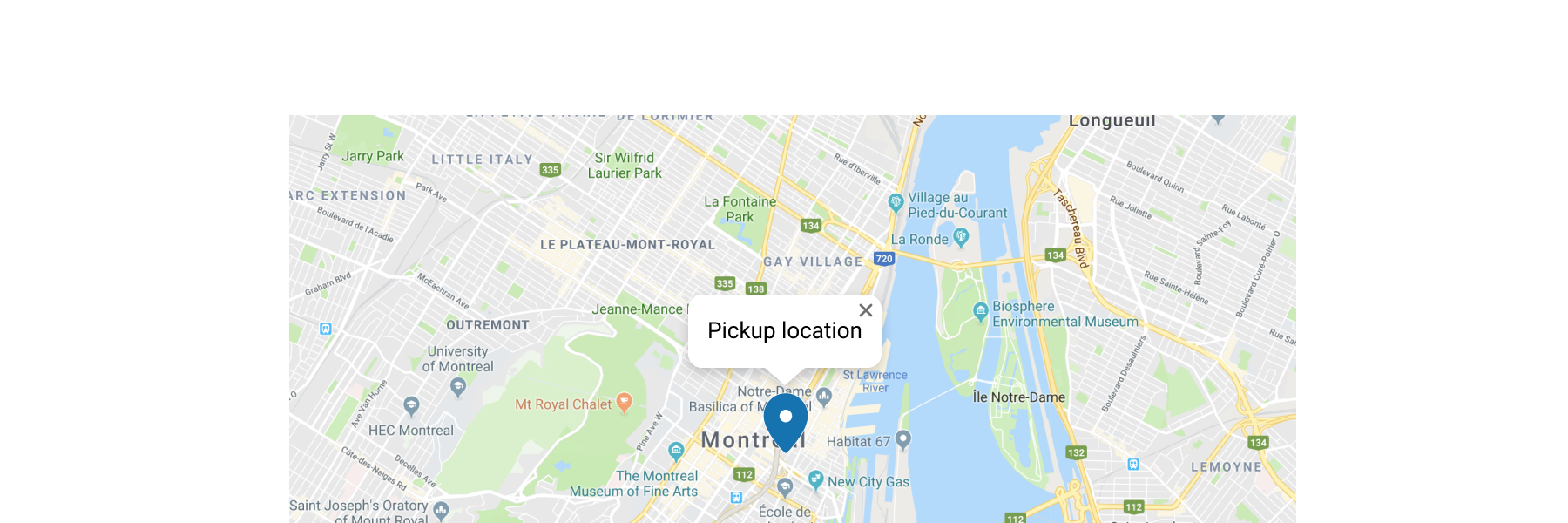

Preview

Anchor to best-practicesBest Practices

Use to display relevant details such as the name, address, description, or other pertinent information related to the location.
Ensure that the content displayed in the map popover is brief, relevant, and easy to understand.
Maintain visual consistency with the overall design of the checkout.
