Sectioncomponent
component
A component used to group other components together in a card-like UI. Usually, sections will be used inside a ScrollView.
Note
Section no longer has a border as of POS 10.0.0.
Anchor to sectionSection
- Anchor to actionaction
The action in the top right of the section that can be triggered by a tap.
- Anchor to titletitlestring
The title of the section.
SectionProps
Renders content that is bound by a border, with a title and a call to action at the top.
- action
The action in the top right of the section that can be triggered by a tap.
SectionHeaderAction - title
The title of the section.
string
export interface SectionProps {
/**
* The title of the section.
*/
title?: string;
/**
* The action in the top right of the section that can be triggered by a tap.
*/
action?: SectionHeaderAction;
}SectionHeaderAction
Allows the implementation of an action at the top right of a `Section`.
- onPress
The callback when the action is tapped by the user.
() => void - title
The title describing the action.
string
export interface SectionHeaderAction {
/**
* The title describing the action.
*/
title: string;
/**
* The callback when the action is tapped by the user.
*/
onPress: () => void;
}Was this section helpful?
Anchor to sectionheaderactionSectionHeaderAction
- Anchor to onPressonPress() => voidrequired
The callback when the action is tapped by the user.
- Anchor to titletitlestringrequired
The title describing the action.
SectionHeaderAction
Allows the implementation of an action at the top right of a `Section`.
- onPress
The callback when the action is tapped by the user.
() => void - title
The title describing the action.
string
export interface SectionHeaderAction {
/**
* The title describing the action.
*/
title: string;
/**
* The callback when the action is tapped by the user.
*/
onPress: () => void;
}Was this section helpful?
Section
import React from 'react'
import { Text, Navigator, Screen, ScrollView, Stack, reactExtension, Section, useApi, Selectable } from '@shopify/ui-extensions-react/point-of-sale'
const ModalComponent = () => {
const api = useApi<'pos.home.modal.render'>();
return (
<Navigator>
<Screen title="Section" name="Section">
<ScrollView>
<Stack direction="vertical" paddingHorizontal="HalfPoint">
<Section title='Items' action={{title: "Show toast", onPress: () => api.toast.show('Hello world!')}}>
<Selectable onPress={() => api.toast.show('Item 1!')}>
<Stack direction="vertical" paddingHorizontal="Small" paddingVertical="Small">
<Text>Item 1</Text>
</Stack>
</Selectable>
<Selectable onPress={() => api.toast.show('Item 2!')}>
<Stack direction="vertical" paddingHorizontal="Small" paddingVertical="Small">
<Text>Item 2</Text>
</Stack>
</Selectable>
<Selectable onPress={() => api.toast.show('Item 3!')}>
<Stack direction="vertical" paddingHorizontal="Small" paddingVertical="Small">
<Text>Item 3</Text>
</Stack>
</Selectable>
<Selectable onPress={() => api.toast.show('Item 4!')}>
<Stack direction="vertical" paddingHorizontal="Small" paddingVertical="Small">
<Text>Item 4</Text>
</Stack>
</Selectable>
</Section>
</Stack>
</ScrollView>
</Screen>
</Navigator>
)
}
export default reactExtension('pos.home.modal.render', () => {
return <ModalComponent />
})
examples
Section
React
import React from 'react' import { Text, Navigator, Screen, ScrollView, Stack, reactExtension, Section, useApi, Selectable } from '@shopify/ui-extensions-react/point-of-sale' const ModalComponent = () => { const api = useApi<'pos.home.modal.render'>(); return ( <Navigator> <Screen title="Section" name="Section"> <ScrollView> <Stack direction="vertical" paddingHorizontal="HalfPoint"> <Section title='Items' action={{title: "Show toast", onPress: () => api.toast.show('Hello world!')}}> <Selectable onPress={() => api.toast.show('Item 1!')}> <Stack direction="vertical" paddingHorizontal="Small" paddingVertical="Small"> <Text>Item 1</Text> </Stack> </Selectable> <Selectable onPress={() => api.toast.show('Item 2!')}> <Stack direction="vertical" paddingHorizontal="Small" paddingVertical="Small"> <Text>Item 2</Text> </Stack> </Selectable> <Selectable onPress={() => api.toast.show('Item 3!')}> <Stack direction="vertical" paddingHorizontal="Small" paddingVertical="Small"> <Text>Item 3</Text> </Stack> </Selectable> <Selectable onPress={() => api.toast.show('Item 4!')}> <Stack direction="vertical" paddingHorizontal="Small" paddingVertical="Small"> <Text>Item 4</Text> </Stack> </Selectable> </Section> </Stack> </ScrollView> </Screen> </Navigator> ) } export default reactExtension('pos.home.modal.render', () => { return <ModalComponent /> })TS
import { extension, Screen, ScrollView, Stack, Navigator, Text, Section, Selectable, } from '@shopify/ui-extensions/point-of-sale'; export default extension( 'pos.home.modal.render', (root, api) => { const screen = root.createComponent(Screen, { name: 'Section', title: 'Section', }); const scrollView = root.createComponent(ScrollView); const section = root.createComponent( Section, { title: 'Section', action: { title: 'Show toast', onPress: () => api.toast.show('Hello world!'), }, }, ); for (let i = 1; i < 5; i++) { const selectable = root.createComponent( Selectable, { onPress: () => api.toast.show(`Item ${i}!`), }, ); const stack = root.createComponent(Stack, { paddingVertical: 'Small', direction: 'vertical', paddingHorizontal: 'Small', }); const textElement = root.createComponent(Text); textElement.append(`Item ${i}`); stack.append(textElement); selectable.append(stack); section.append(selectable); } const rootStack = root.createComponent( Stack, { paddingHorizontal: 'HalfPoint', direction: 'vertical', }, ); rootStack.append(section); scrollView.append(rootStack); screen.append(scrollView); const navigator = root.createComponent(Navigator); navigator.append(screen); root.append(navigator); }, );

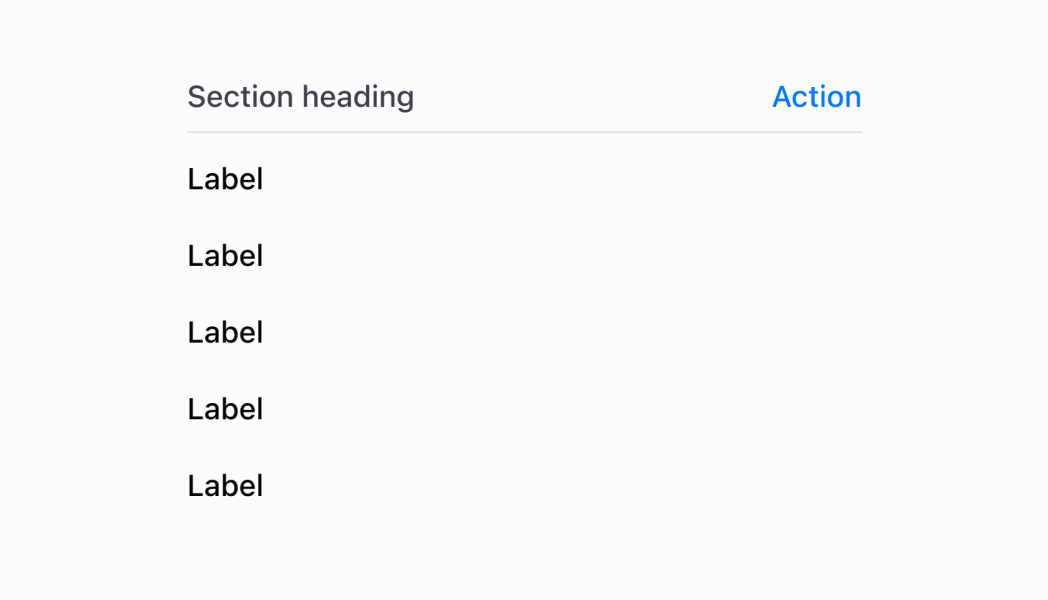

Preview
