TimeField

The TimeField component captures time input from merchants with a consistent interface for time selection and proper validation. Use it to collect time information in scheduling, booking, or data entry workflows.

The component supports both 12-hour and 24-hour time formats based on locale settings, with built-in validation to ensure valid time entries. It includes features like time picker integration, keyboard shortcuts, and formatted display to streamline time entry for scheduling, appointment booking, and time-sensitive operations in retail environments.

TimeField components respects merchant locale settings for default time format preferences while allowing manual override for specific use cases that require alternative formats.

Support

Targets (9)

Supported targets

Anchor to PropertiesProperties

Configure the following properties on the TimeField component.

Anchor to label label string required: The content to use as the field label that describes the text information being requested.
Anchor to action action: A button configuration object displayed under the text field to provide extra functionality.
Anchor to disabled disabled boolean: Controls whether the field can be modified. When true, the field is disabled and users cannot edit its value.
Anchor to error error string: An error message that indicates a problem to the user. The field is given specific stylistic treatment to communicate issues that must be resolved immediately.
Anchor to helpText helpText string: The label text displayed under the field that provides guidance or instructions to assist users.
Anchor to is24Hour is24Hour boolean Default: false: Whether the clock displays in 24-hour format instead of 12-hour format. This property only affects Android devices.
Anchor to onBlur onBlur () => void: A callback function executed when focus is removed from the field.
Anchor to onChange onChange (value: string) => void: A callback function executed when the user has finished editing the field, receiving the new text value as a parameter. You should update the value property in response to this callback.
Anchor to onFocus onFocus () => void: A callback function executed when the field receives focus.
Anchor to value value string: The current text value for the field. If omitted, the field will be empty. You should update the value property in response to the onChange callback.

InputAction

Defines the configuration object for action buttons displayed below input fields to provide extra functionality.

disabled
A boolean value that determines whether the action button can be pressed.
```
boolean
```
label
The text displayed on the action button.
```
string
```
onPress
A callback function executed when the action button is pressed.
```
() => void
```

Anchor to ExamplesExamples

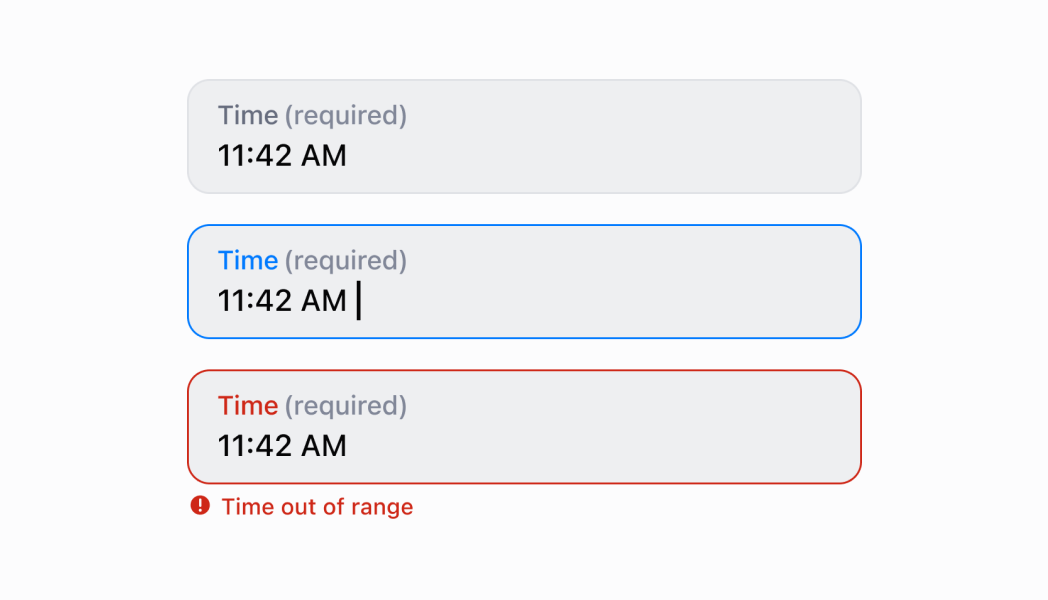

Anchor to Capture time input with validationCapture time input with validation

Collect time information using a text-based input field with built-in validation. This example shows a TimeField that supports both 12-hour and 24-hour formats based on locale, with time picker integration and keyboard shortcuts for scheduling and time-sensitive operations.

Capture time input with validation

import React, {useState} from 'react';

import {

TimeField,

Screen,

ScrollView,

Navigator,

Text,

reactExtension,

} from '@shopify/ui-extensions-react/point-of-sale';

const SmartGridModal = () => {

const [time, setTime] = useState('');

return (

<Text>Selected Time: {time}</Text>

</ScrollView>

</Screen>

</Navigator>

);

};

export default reactExtension('pos.home.modal.render', () => (

));

import {

Navigator,

Screen,

ScrollView,

Text,

TimeField,

extension,

} from '@shopify/ui-extensions/point-of-sale';

export default extension('pos.home.modal.render', (root, api) => {

const timeField = root.createComponent(TimeField, {

label: 'Select Time',

value: '',

});

const textBox = root.createComponent(Text);

const onChangeHandler = (newValue: string) => {

timeField.updateProps({value: newValue});

const textContent = `Selected Time: ${newValue}`;

textBox.replaceChildren(textContent);

};

timeField.updateProps({onChange: onChangeHandler});

const scrollView = root.createComponent(ScrollView);

scrollView.append(timeField);

scrollView.append(textBox);

const screen = root.createComponent(Screen, {

name: 'TimeField',

title: 'Time Field Example',

});

screen.append(scrollView);

const navigator = root.createComponent(Navigator);

navigator.append(screen);

root.append(navigator);

});

React

import React, {useState} from 'react';
import {
  TimeField,
  Screen,
  ScrollView,
  Navigator,
  Text,
  reactExtension,
} from '@shopify/ui-extensions-react/point-of-sale';

const SmartGridModal = () => {
  const [time, setTime] = useState('');
  return (
    <Navigator>
      <Screen name="TimeField" title="TimeField Example">
        <ScrollView>
          <TimeField label="Time" value={time} onChange={setTime} />
          <Text>Selected Time: {time}</Text>
        </ScrollView>
      </Screen>
    </Navigator>
  );
};

export default reactExtension('pos.home.modal.render', () => (
  <SmartGridModal />
));

TS

import {
  Navigator,
  Screen,
  ScrollView,
  Text,
  TimeField,
  extension,
} from '@shopify/ui-extensions/point-of-sale';

export default extension('pos.home.modal.render', (root, api) => {
  const timeField = root.createComponent(TimeField, {
    label: 'Select Time',
    value: '',
  });

  const textBox = root.createComponent(Text);

  const onChangeHandler = (newValue: string) => {
    timeField.updateProps({value: newValue});

    const textContent = `Selected Time: ${newValue}`;
    textBox.replaceChildren(textContent);
  };

  timeField.updateProps({onChange: onChangeHandler});

  const scrollView = root.createComponent(ScrollView);
  scrollView.append(timeField);
  scrollView.append(textBox);

  const screen = root.createComponent(Screen, {
    name: 'TimeField',
    title: 'Time Field Example',
  });
  screen.append(scrollView);

  const navigator = root.createComponent(Navigator);
  navigator.append(screen);

  root.append(navigator);
});

Anchor to Best practicesBest practices

Provide clear labels for time context: Use specific labels that indicate what time is being requested, like specific examples rather than generic Time. This helps users understand the context and purpose.
Offer helpful guidance with helpText: Use the helpText property to explain time constraints, business hours, or format expectations. For example, Business hours only (9 AM - 5 PM) or Must be a future time.
Implement proper time validation: Use the error property to display validation messages when users enter invalid times or times outside acceptable ranges. Provide clear, actionable error messages that help users correct their input.
Add action buttons for time operations: Use the action property to provide helpful actions like Set to Now, Clear Time, or Use Business Hours. This enhances usability by providing quick access to common time operations.
Handle focus events for time picker coordination: Use onFocus and onBlur callbacks to coordinate with TimePicker components or other time selection interfaces. This is useful for showing/hiding time pickers or managing related form fields.

Anchor to LimitationsLimitations

TimeField provides text-based time input—for visual time selection with clock or spinner interfaces, use the TimePicker component which offers interactive time selection.
The is24Hour property only affects Android devices—other platforms may use their system-level time format preferences regardless of this setting.
Action buttons are limited to simple press callbacks—complex action workflows require custom implementation or additional components.
