Navigator

Anchor to PropertiesProperties

Anchor to ExamplesExamples

Anchor to Navigate between screensNavigate between screens

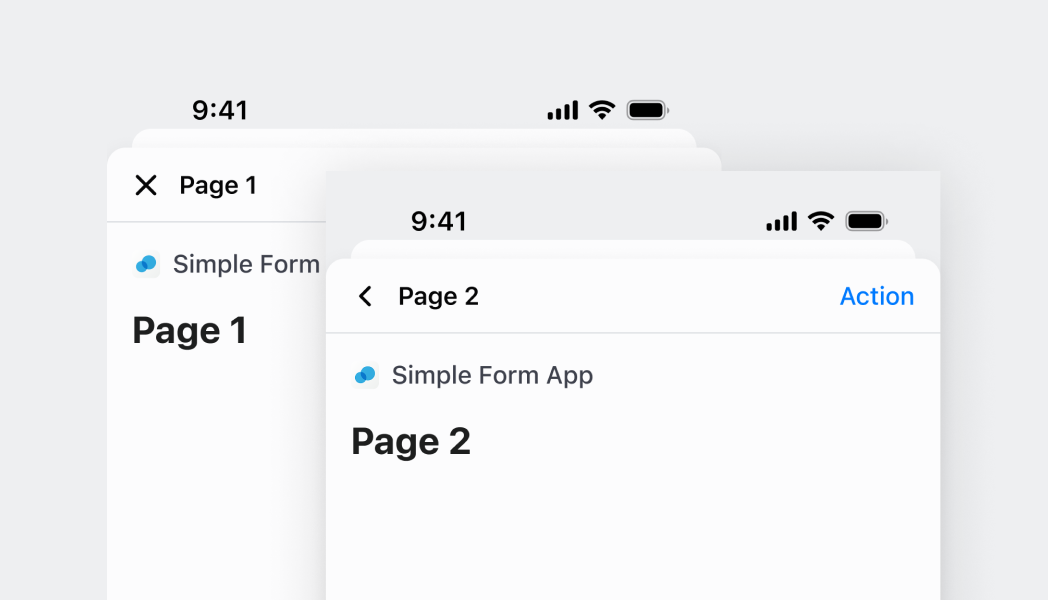

Create a multi-screen navigation flow within your extension. This example shows how to set up a Navigator with multiple Screen components and navigate between them, enabling complex workflows, wizards, or detailed views with proper navigation stack management.

Navigate between screens

Navigate between screens

ReactTS

Copy

99

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

import React from 'react'

import { Screen, Text, Navigator, reactExtension, Button, useApi } from '@shopify/ui-extensions-react/point-of-sale';

const Modal = () => {

const api = useApi<'pos.home.modal.render'>();

return (

<Navigator>

<Screen name="Home" title="Home">

<Text>Home screen</Text>

<Button title="Navigate to details" onPress={() => api.navigation.navigate('Details')} />

</Screen>

<Screen name="Details" title="Details">

<Text>Details screen</Text>

</Screen>

</Navigator>

)

}

export default reactExtension('pos.home.modal.render', () => <Modal />);

99

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

import {

extension,

Screen,

Navigator,

Text,

Button,

} from '@shopify/ui-extensions/point-of-sale';

export default extension('pos.home.modal.render', (root, api) => {

const homeScreen = root.createComponent(Screen, {

name: 'Home',

title: 'Home',

});

const homeText = root.createComponent(Text);

homeText.append('Home screen');

homeScreen.append(homeText);

const navigateButton = root.createComponent(Button, {

title: 'Navigate to details',

onPress: () => api.navigation.navigate('Details'),

});

homeScreen.append(navigateButton);

const detailsScreen = root.createComponent(Screen, {

name: 'Details',

title: 'Details',

});

const detailsText = root.createComponent(Text);

detailsText.append('Details screen');

detailsScreen.append(detailsText);

const navigator = root.createComponent(Navigator);

navigator.append(homeScreen);

navigator.append(detailsScreen);

root.append(navigator);

});

React

import React from 'react'

import { Screen, Text, Navigator, reactExtension, Button, useApi } from '@shopify/ui-extensions-react/point-of-sale';

const Modal = () => {
  const api = useApi<'pos.home.modal.render'>();

  return (
    <Navigator>
      <Screen name="Home" title="Home">
        <Text>Home screen</Text>
        <Button title="Navigate to details" onPress={() => api.navigation.navigate('Details')} />
      </Screen>
      <Screen name="Details" title="Details">
        <Text>Details screen</Text>
      </Screen>
    </Navigator>
  )
}

export default reactExtension('pos.home.modal.render', () => <Modal />);

TS

import {
  extension,
  Screen,
  Navigator,
  Text,
  Button,
} from '@shopify/ui-extensions/point-of-sale';

export default extension('pos.home.modal.render', (root, api) => {
  const homeScreen = root.createComponent(Screen, {
    name: 'Home',
    title: 'Home',
  });

  const homeText = root.createComponent(Text);
  homeText.append('Home screen');
  homeScreen.append(homeText);

  const navigateButton = root.createComponent(Button, {
    title: 'Navigate to details',
    onPress: () => api.navigation.navigate('Details'),
  });
  homeScreen.append(navigateButton);

  const detailsScreen = root.createComponent(Screen, {
    name: 'Details',
    title: 'Details',
  });

  const detailsText = root.createComponent(Text);
  detailsText.append('Details screen');
  detailsScreen.append(detailsText);

  const navigator = root.createComponent(Navigator);
  navigator.append(homeScreen);
  navigator.append(detailsScreen);
  root.append(navigator);
});

import React, {useState} from 'react';

import {
  Screen,
  Text,
  Navigator,
  reactExtension,
  Button,
  useApi,
} from '@shopify/ui-extensions-react/point-of-sale';

const Modal = () => {
  return (
    <Navigator>
      <HomeScreen />
      <DetailsScreen />
    </Navigator>
  );
};

const HomeScreen = () => {
  const api = useApi<'pos.home.modal.render'>();
  return (
    <Screen name="Home" title="Home">
      <Text>Home screen</Text>
      <Button
        title="Navigate to details"
        onPress={() => api.navigation.navigate('Details', {orderId: '123'})}
      />
    </Screen>
  );
};

const DetailsScreen = () => {
  const [params, setParams] = useState<pos.home.modal.render>();

  return (
    <Screen
      name="Details"
      title="Details"
      presentation={{sheet: true}}
      onReceiveParams={setParams}
    >
      <Text>{`Order ID: ${params.orderId}`}</Text>
    </Screen>
  );
};

export default reactExtension('pos.home.modal.render', () => <Modal />);

import {
  extension,
  Screen,
  Navigator,
  Text,
  Button,
} from '@shopify/ui-extensions/point-of-sale';

export default extension('pos.home.modal.render', (root, api) => {
  const homeScreen = root.createComponent(Screen, {
    name: 'Home',
    title: 'Home',
  });

  const homeText = root.createComponent(Text);
  homeText.append('Home screen');
  homeScreen.append(homeText);

  const navigateButton = root.createComponent(Button, {
    title: 'Navigate to details',
    onPress: () => api.navigation.navigate('Details', {orderId: '123'}),
  });
  homeScreen.append(navigateButton);

  const detailsText = root.createComponent(Text);

  const detailsScreen = root.createComponent(Screen, {
    name: 'Details',
    title: 'Details',
    onReceiveParams: (params) => {
      detailsText.replaceChildren(`Order ID: ${params.orderId}`);
    },
  });

  detailsScreen.append(detailsText);

  const navigator = root.createComponent(Navigator);
  navigator.append(homeScreen);
  navigator.append(detailsScreen);
  root.append(navigator);
});

import React from 'react'

import { Screen, Text, Navigator, reactExtension, Button, useApi } from '@shopify/ui-extensions-react/point-of-sale';

const Modal = () => {
  const api = useApi<'pos.home.modal.render'>();

  return (
    <Navigator>
      <Screen name="Home" title="Home">
        <Text>Home screen</Text>
        <Button title="Navigate to details" onPress={() => api.navigation.navigate('Details')} />
      </Screen>
      <Screen name="Details" title="Details" presentation={{sheet: true}}>
        <Text>Details screen</Text>
      </Screen>
    </Navigator>
  )
}

export default reactExtension('pos.home.modal.render', () => <Modal />);

import {
  extension,
  Screen,
  Navigator,
  Text,
  Button,
} from '@shopify/ui-extensions/point-of-sale';

export default extension('pos.home.modal.render', (root, api) => {
  const homeScreen = root.createComponent(Screen, {
    name: 'Home',
    title: 'Home',
  });

  const homeText = root.createComponent(Text);
  homeText.append('Home screen');
  homeScreen.append(homeText);

  const navigateButton = root.createComponent(Button, {
    title: 'Navigate to details',
    onPress: () => api.navigation.navigate('Details'),
  });
  homeScreen.append(navigateButton);

  const detailsScreen = root.createComponent(Screen, {
    name: 'Details',
    title: 'Details',
    presentation: {sheet: true},
  });

  const detailsText = root.createComponent(Text);
  detailsText.append('Details screen');
  detailsScreen.append(detailsText);

  const navigator = root.createComponent(Navigator);
  navigator.append(homeScreen);
  navigator.append(detailsScreen);
  root.append(navigator);
});

Anchor to Best practicesBest practices

• Use descriptive screen names for navigation: Choose clear, unique screen names that accurately represent their content and purpose. These names are used by the Navigation API for programmatic navigation and should be meaningful for code maintainability.
• Set appropriate initial screens: Select initial screens that provide the most logical entry point for your workflow. Consider the context in which your extension will be launched and what users will most likely want to see first.
• Implement proper navigation patterns: Use the Navigation API methods consistently—navigate() for moving forward, pop() for going back, and dismiss() for closing the extension. This creates predictable navigation behavior that users can understand.
• Handle screen parameters effectively: When passing parameters between screens using navigation.navigate(), ensure receiving screens properly handle the data through their onReceiveParams callbacks. Design parameter structures that are maintainable and type-safe.
• Consider navigation context and user flow: Design navigation patterns that make sense within the broader POS workflow. Avoid deep navigation hierarchies that might confuse users or disrupt their primary tasks.

Anchor to LimitationsLimitations

• Navigator requires Screen components as children—it can't manage navigation for other component types or standalone content.
• Navigation state is managed internally—external navigation state management or complex routing patterns require custom implementation using the Navigation API.
• The component is designed for modal-style navigation within POS UI extensions—it's not suitable for main application navigation or replacing core POS navigation patterns.
